OEM Primary Cotton High Quality G3/G4 Air Conditioner Filter Filtration blue and White Air Filter Material
OEM Primary Cotton High Quality G3/G4 Air Conditioner Filter Filtration blue and White Air Filter Material
Features
A pre-filter is an integral part of almost any air purifier that you see on the market. It’s the first stage of filtration, and it essentially helps to capture large particles.
1.Durable Construction: Made from robust synthetic fibers, ensuring a longer lifespan and consistent performance in various conditions.
2.Versatile Applications: Suitable for residential, commercial, and industrial HVAC systems, as well as air purifiers and other air filtration equipment.
Fast Sampling Support
Samples ready within 3–7 days for custom OEM & ODM orders. Flexible customization solutions are available to match your unique product requirements.
Advanced Production Equipment & Stable Quality
Equipped with professional automated production lines and sophisticated testing machinery, enabling consistent, reliable product quality across all batches.
Mass Production & On-Time Shipment
Efficient full-scale manufacturing capacity ensures finished goods can be delivered within 15–20 working days, guaranteeing punctual shipment schedules.
ISO Standard Strict Quality Control
All production follows strict ISO 9001 standards. Each shipment carries a complete quality inspection certificate to satisfy factory release specifications.
Description
Our filter media rolls are offered in different sizes, thicknesses, and filtration grades to suit various air filtration systems. They can be tailored to fit specific needs and applications. The rolls and pads are specially designed to efficiently trap dust particles and have a large capacity to retain them, without releasing any fibers into the airflow.

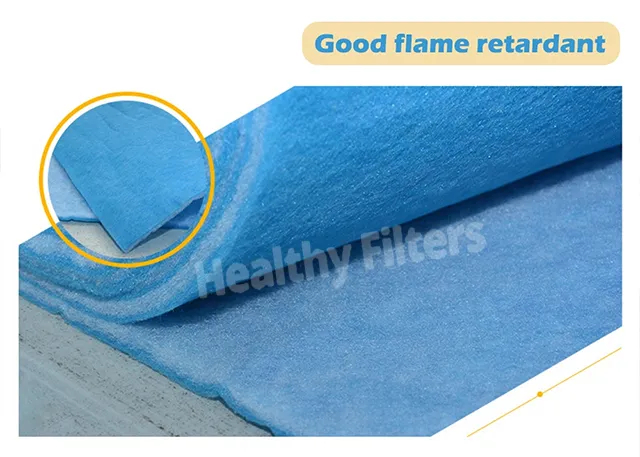

Adopting high-performance, high-strength anti-breakage polyester fiber, step by step encryption, carding mesh hot air production; has a high dust capacity, low resistance, flame retardant characteristics; does not contain silicone, able to resist such as chemical solvents, acidic fumes and other chemical substances; sustained resistance to temperature of 100 ℃, instantaneous resistance to temperature of 120 ℃; filtration object ≥ 5 μm particles of dust and all kinds of suspended matter; coil or sheet, according to customer requirements Stamped into round, oval and other specifications.
- Large Filtration area
- Grade: G1-G4
- Content static electricity fiber
- Resistant to fractures and highly elastic

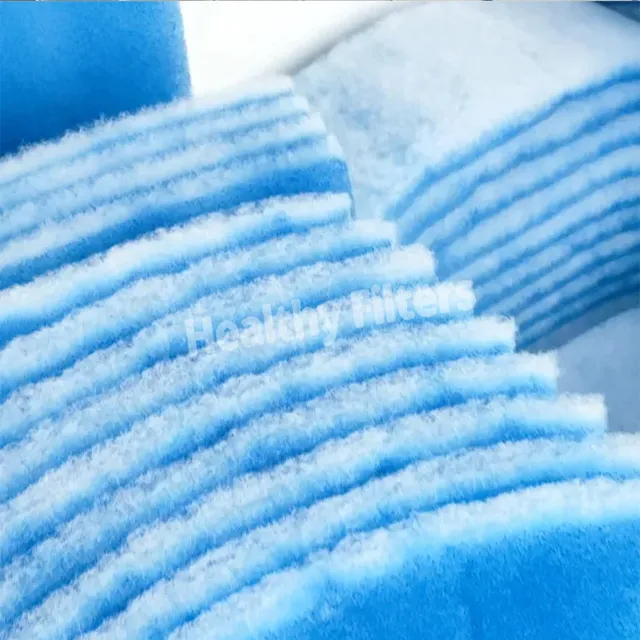

- The filter material fibers are progressively denser from blue (air inlet side) to white (air outlet side), enabling layered filtration
- Gradient Density Structure
- Large dust holding capacity, small resistance, long service life and economical
- Absorbs the larger particles to prolong service life and efficiency of medium and high-efficient filter
- Silicone-free

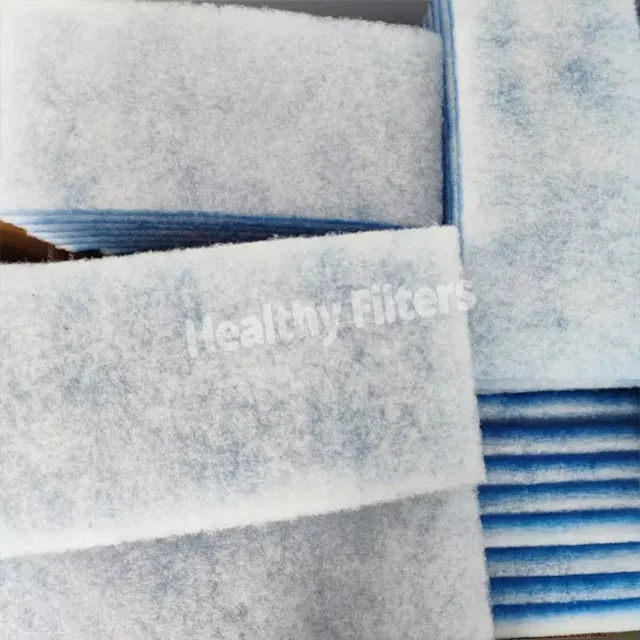

- Available in cut pads or rolls
- Washable
Technical Parameters
| Part Name | Blue Pre Filter |
| Size | 2*20m,1*20m |
| Color | Blue(Customized) |
| Dust holdingcapacity(g/㎡) | 400-630 |
| Efficiency | G3/4 |
| Weight | 20 kg |
Standard Model Options
| Item | Specification |
|---|---|
| Product Name | G3–G4 Blue & White Synthetic Pre-Filter Media Roll |
| Product Type | Primary Air Filter Media / Pre-Filter Cotton |
| Model | HF-BPF |
| Filter Media | Progressive-Density Synthetic Fiber |
| Efficiency Grade | G3 / G4 |
| Air-Inlet Side | Blue |
| Air-Outlet Side | White |
| Standard Roll Sizes | 1 × 20 m / 2 × 20 m |
| Dust-Holding Capacity | 400–630 g/m² |
| Standard Color | Blue and White |
| Supply Form | Roll / Cut Pad |
| Main Function | Coarse Dust and Large Particle Filtration |
| Main Advantages | Low Resistance, High Dust Capacity, Long Service Life |
| Washability | Available for Suitable Applications |
| OEM / ODM | Available |
Applications
| HVAC & Air Conditioning | Air Purifiers & Ventilation Equipment | Spray & Baking Air-Supply Systems | Industrial Pre-Filtration |
|---|---|---|---|
| Used as the first-stage filter in central air-conditioning systems, AHUs, fan coil units, and residential or commercial HVAC equipment. | Suitable for air purifiers, fresh-air systems, ventilation units, and replacement pre-filter products. | Applied for pre-filtration and airflow equalization in spraying systems, drying rooms, and baking installations. | Protects downstream filters in factories, workshops, dust-removal systems, and general industrial ventilation equipment. |
Customization & Quality Control
| Customization Available | Quality Inspection |
|---|---|
| • Custom roll width and length • G3 / G4 efficiency options • Custom thickness and fiber density • Blue-white or customized color combinations • Roll, cut-pad, or framed-filter supply • Washable and non-washable configurations • Custom dust-holding and resistance requirements • OEM labels, branding, roll cores, and packaging |
• Roll width, length, and thickness inspection • Fiber density and gradient-structure verification • Blue and white airflow-side identification • Surface uniformity and defect inspection • Airflow-resistance testing upon request • Dust-holding capacity testing upon request • Washability and recovery inspection when applicable • Final roll winding and packaging inspection |
