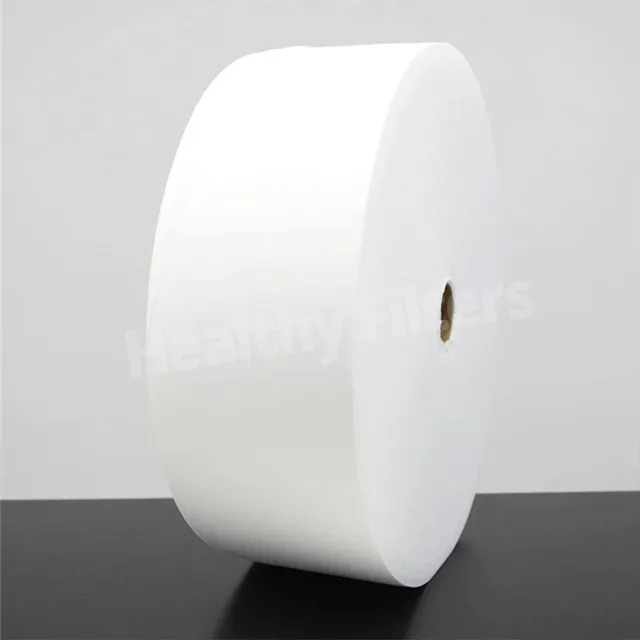

Filter Raw Material G3/G4 100% Es Material Fiber Nonwoven Fabric 25-50GSM Hot Air Cotton Cold Non-Woven Fabric
Filter Raw Material G3/G4 100% Es Material Fiber Nonwoven Fabric 25-50GSM Hot Air Cotton Cold Non-Woven Fabric
Features
Discover the ultimate solution for maintaining optimal air quality and extending the life of HVAC systems with our high-efficiency pre-filter media.
- Engineered to allow maximum airflow while maintaining high filtration efficiency, reducing pressure drop and ensuring the smooth operation of your HVAC system.
- Cost-effective and environmentally friendly, our washable pre-filter media can be reused multiple times, reducing waste.
Fast Sampling Support
Samples ready within 3–7 days for custom OEM & ODM orders. Flexible customization solutions are available to match your unique product requirements.
Advanced Production Equipment & Stable Quality
Equipped with professional automated production lines and sophisticated testing machinery, enabling consistent, reliable product quality across all batches.
Mass Production & On-Time Shipment
Efficient full-scale manufacturing capacity ensures finished goods can be delivered within 15–20 working days, guaranteeing punctual shipment schedules.
ISO Standard Strict Quality Control
All production follows strict ISO 9001 standards. Each shipment carries a complete quality inspection certificate to satisfy factory release specifications.

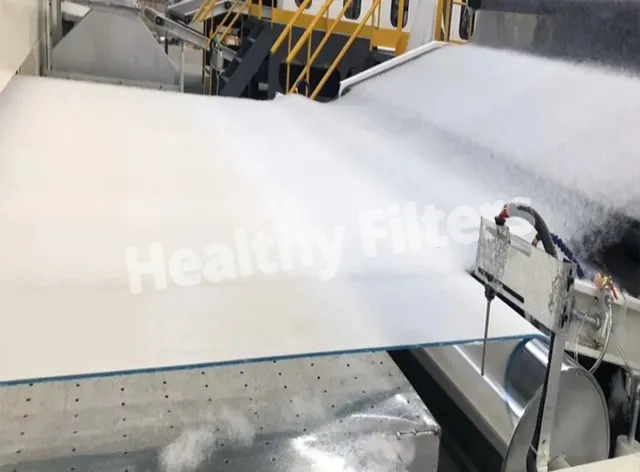

Hot Air Cotton is a nonwoven, nonwoven cotton fabric formed using ES fibers (two-component composite fibers of polyethylene and polypropylene) after passing through a single-layer hot air oven. The finished product is lighter in grams and can be made very thin. Hot air cotton does not require a needling machine, but a hot air oven. Appearance of hot air cotton is relatively smooth, through observation you can see the hot air cotton multi-layer fiber cotton bonding traces.
Our filter media rolls are offered in different sizes, thicknesses, and filtration grades to suit various air filtration systems. They can be tailored to fit specific needs and applications. The rolls and pads are specially designed to efficiently trap dust particles and have a large capacity to retain them, without releasing any fibers into the airflow.
- Large Filtration area
- Large dust holding capacity
- Grade: G1-G4
- Content static electricity fiber
- It is woven specially with the supplier fiber
- All filter mats are manfactured using an eco-friendly recipe
- Nontoxic,anti-bacteriano stimulation and couses no allergy to human body Ag+ restrain breeding ground for bacteria
- Excellent softness, Super smooth, more fluffy, hydrophilic, dryness, exquisite 3D apperance
- 3D embossing, low re-wet, permeability
- High level of tensile strength, and elongation
Technical Parameters
| Part Name | Pre Filter |
| Size | 2*20m,1*20m |
| Color | White(Customized) |
| Dust holdingcapacity(g/㎡) | 400-630 |
| Efficiency | G3/4 |
| Weight | 20 kg |
Standard Model Options
| Parameter | Specification |
|---|---|
| Model | HF-ES |
| Media Material | ES Bicomponent Nonwoven Fiber |
| Filtration Grade | G3 / G4 |
| Basis Weight | 25–500 g/m², Customized |
| Standard Roll Size | 1 × 20 m / 2 × 20 m |
| Color | White / Customized |
| Dust-Holding Capacity | 400–630 g/m² |
| Surface | Soft, Smooth and Uniform |
| Structure | Hot-Air-Bonded 3D Fiber Web |
| Tensile Strength | High, Depending on Basis Weight |
| Elongation | Customizable by Media Construction |
| Hydrophilic Treatment | Available |
| Static-Electret Treatment | Available |
| Supply Format | Roll / Sheet / Pad |
| Reference Package Weight | Approximately 20 kg or Customized |
Applications
| HVAC & Air Purification | Filter Manufacturing | Hygiene & Absorbent Products | Industrial Nonwoven Applications |
|---|---|---|---|
| Used as primary filter media in HVAC systems, air purifiers, fresh-air units, and ventilation equipment. | Suitable for framed filters, cut pads, replacement filters, laminated media, and custom filter components. | Selected soft and hydrophilic grades may be used in diapers, sanitary products, wipes, absorbent pads, and related composites. | Used in bedding, protective layers, cushioning, packaging, technical textiles, and other converted nonwoven products. |
Customization & Quality Control
| Customization Available | Quality Inspection |
|---|---|
| • Custom roll width and length • Basis weight from approximately 25–500 g/m² • G3 / G4 filtration configurations • White or custom colors • Hydrophilic, dry-touch, or static-electret treatment • Roll, sheet, pad, disc, or die-cut supply • 3D embossing and lamination options • OEM labels, branding, samples, and custom packaging |
• Raw ES fiber material verification • Roll width, length, and basis-weight inspection • Thickness and surface-uniformity check • Tensile strength and elongation testing • Airflow-resistance testing for filter grades • Dust-holding and filtration testing upon request • Hydrophilic and re-wet testing for hygiene grades • Final winding, appearance, and packaging inspection |
