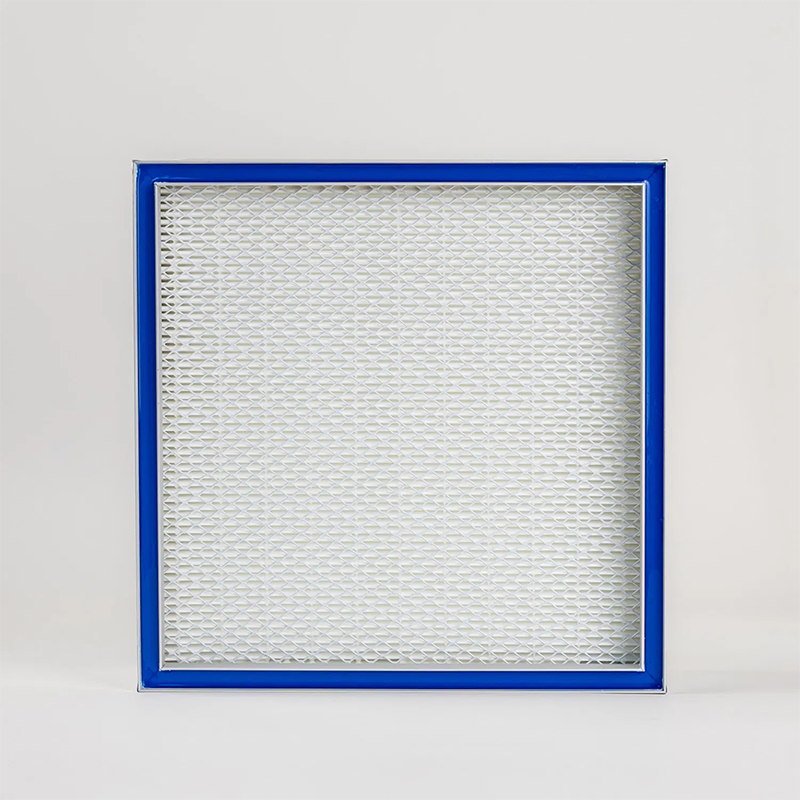

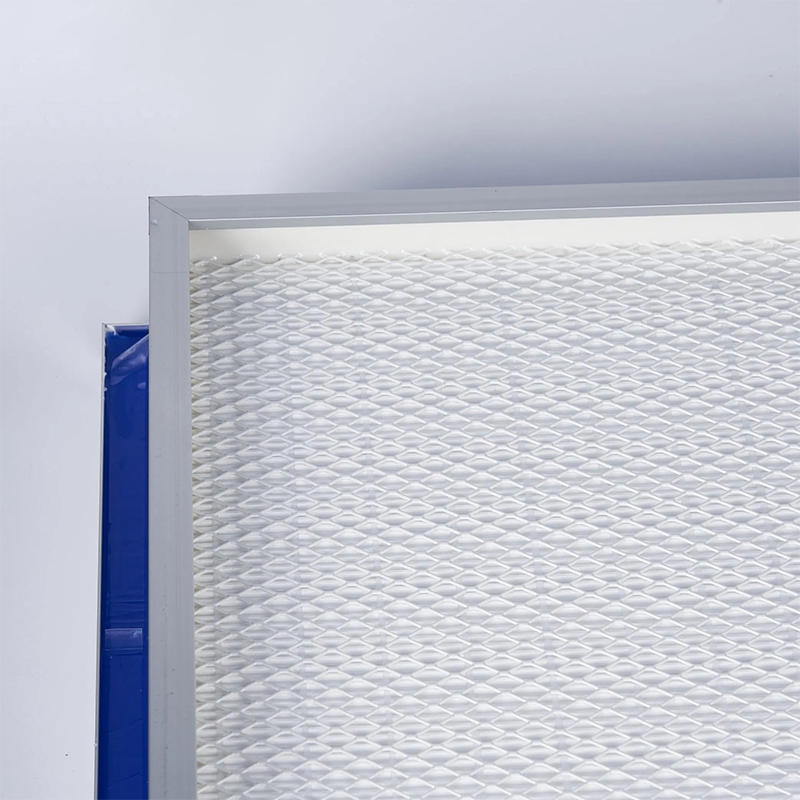

Mini Pleat Panel Filter U15 H14 HEPA ULPA Air Filter with Gel Seal Anodized Aluminum Alloy Frame
Mini Pleat Panel Filter U15 H14 HEPA ULPA Air Filter with Gel Seal Anodized Aluminum Alloy Frame
Features
- Urethane gel seal for superior airtight performance
- H13, H14, and U15 efficiency grades available
- Ultra-fine glass fiber filter media
- Mini-pleat construction with large effective filtration area
- Lightweight anodized aluminum frame
- Hot-melt adhesive separator technology
- Low pressure drop with high airflow efficiency
- Compact design for ceiling modules and FFUs
- Easy installation and long service life
- 100% relative humidity resistance
- Suitable for DOP/PAO integrity testing
- OEM and custom manufacturing available
Fast Sampling Support
Samples ready within 3–7 days for custom OEM & ODM orders. Flexible customization solutions are available to match your unique product requirements.
Advanced Production Equipment & Stable Quality
Equipped with professional automated production lines and sophisticated testing machinery, enabling consistent, reliable product quality across all batches.
Mass Production & On-Time Shipment
Efficient full-scale manufacturing capacity ensures finished goods can be delivered within 15–20 working days, guaranteeing punctual shipment schedules.
ISO Standard Strict Quality Control
All production follows strict ISO 9001 standards. Each shipment carries a complete quality inspection certificate to satisfy factory release specifications.
Description
Gel sealing HEPA filter has below advanced performance:
* No clapboard design,much lower running resistance.
* Wide application,compact structure,storage space saving
* Ultra thin design, installation space saving
* Liquid tank sealing,much better sealing performance.
Technical Parameters
| Frame material: | Galvanized sheet/Stainless Steel/Aluminium sheet/Anodized aluminum profile |
| Separator: | Hot melt adhesive |
| Media: | Ultra fine glass fiber |
| Sealant: | Urethane gel sealant |
| Std. EN1822:2009 : | H13 / H14 / U15 |
| Std. IEST RP-CC-001.5: | 2009 TYPE C (MERV 18) / TYPE D (MERV 19)/TYPE G(Super ULPA)/ F(MERV20) |
| Filter media: | Ultra-fine glass fiber filter paper |
| Maximum temperature: | 70ºC |
| Maximum relative humidity: | 100% |
| Customized size: | Available |
| Media guard: | Baking finish steel screen,aluminum screen |
| Efficiency: | 99.95% at 0.3μm(H13); 99.999% at 0.3μm(H14); 99.9995% at 0.12μm(U15); (DOP/PAO particle counting method) |
Standard Model Options
| Item | Specification |
|---|---|
| Product Name | Mini-Pleat Gel Seal HEPA Filter |
| Filter Type | Terminal HEPA / ULPA Filter |
| Efficiency | H13 / H14 / U15 |
| Standard | EN1822:2009 |
| IEST Classification | Type C (MERV18) / Type D (MERV19) / Type E (Super ULPA) / Type F (MERV20) |
| Filter Media | Ultra-Fine Glass Fiber Paper |
| Separator | Hot-Melt Adhesive |
| Sealant | Urethane Gel Seal |
| Frame Material | Anodized Aluminum / Aluminum / Galvanized Steel / Stainless Steel |
| Media Guard | Aluminum Screen or Painted Steel Mesh |
| Maximum Temperature | 70°C |
| Maximum Relative Humidity | 100% RH |
| Test Method | DOP / PAO Particle Counting |
| Installation | Ceiling Grid, FFU, AHU Terminal Filter Housing |
Applications
| Pharmaceutical Cleanrooms | Semiconductor Manufacturing | Hospital Operating Rooms | FFU & Ceiling Grid Systems |
|---|---|---|---|
| Final-stage filtration for GMP pharmaceutical production, sterile filling lines, and clean manufacturing areas. | High-efficiency terminal filtration for wafer fabrication, microelectronics, and precision assembly environments. | Provides clean air for operating theatres, ICUs, isolation wards, and biological laboratories. | Designed for cleanroom ceiling modules, fan filter units (FFUs), and terminal air supply systems requiring leak-free sealing. |
Customization & Quality Control
| Customization Available | Quality Inspection |
|---|---|
| • Custom filter dimensions and thickness • H13 / H14 / U15 efficiency options • Gel seal groove design customization • Aluminum, anodized aluminum, stainless steel or galvanized frame • Aluminum or painted steel protective screen • OEM branding and packaging • Project-specific airflow and pressure drop design • Custom cleanroom installation solutions |
• Frame dimension verification • Pleat spacing and media inspection • Gel seal groove integrity inspection • Frame assembly quality check • Initial pressure drop testing • Filtration efficiency verification (EN1822) • DOP/PAO leak scan testing upon request • Final appearance and packaging inspection before shipment |
