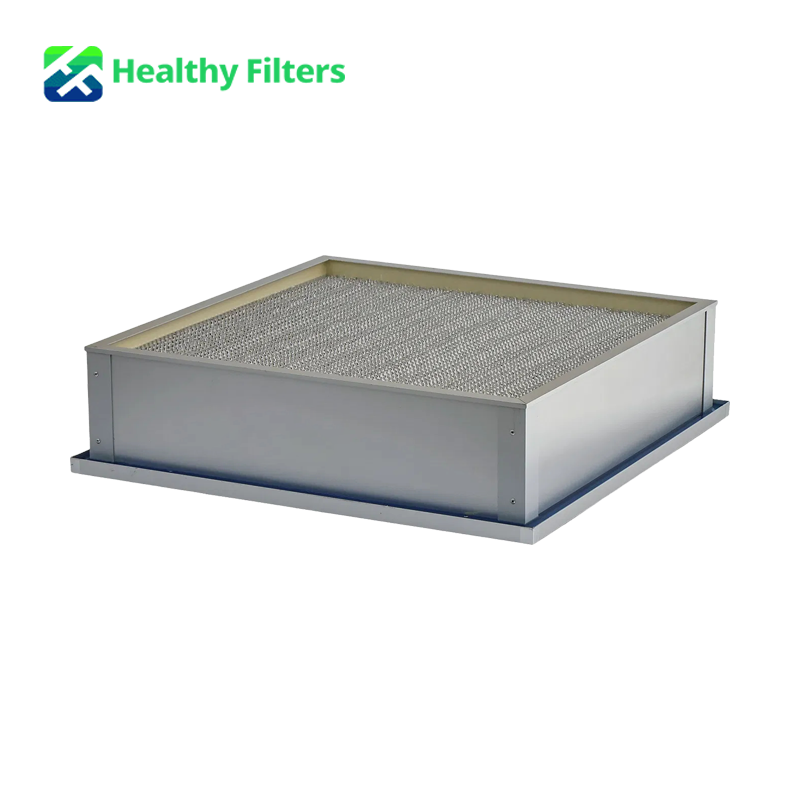

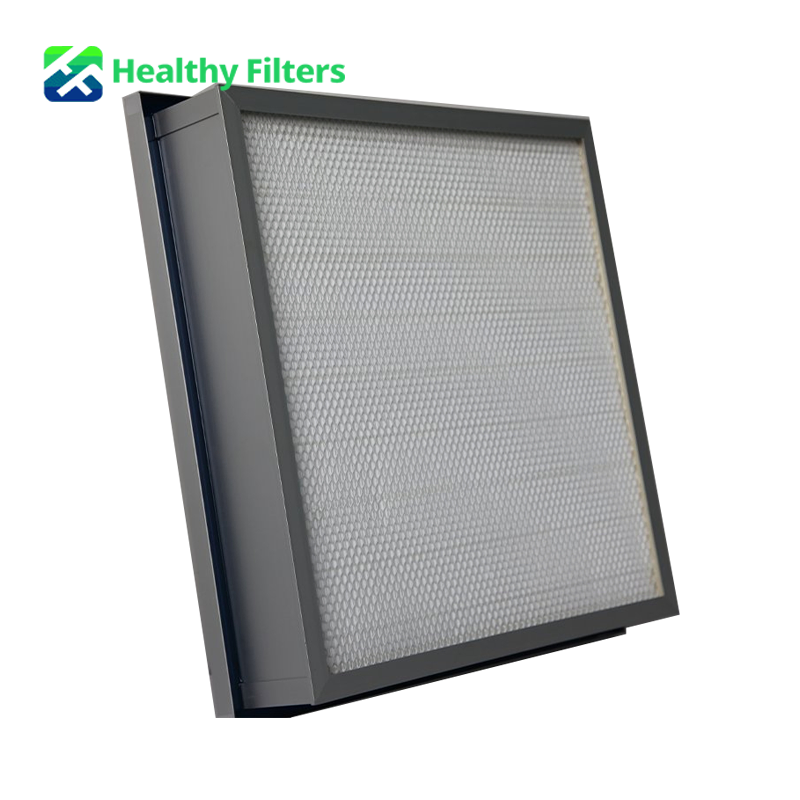

High-Performance Liquid Tank Sealed Fine Efficiency Air Filter with Multi-Layer Filtration for Industrial & Commercial Applications
High-Performance Liquid Tank Sealed Fine Efficiency Air Filter with Multi-Layer Filtration for Industrial & Commercial Applications
Features
- Liquid gel seal design for superior airtight installation
- H14 high-efficiency terminal filtration
- Ultra-fine fiberglass mini-pleat filter media
- Large effective filtration area with low pressure drop
- High dust holding capacity for extended service life
- Lightweight yet durable aluminum frame
- Stable airflow with excellent energy efficiency
- Environmentally friendly gel sealing technology
- Compatible with knife-edge gel seal housings
- Compact profile for ceiling grid and FFU systems
- Easy installation and maintenance
- OEM and custom manufacturing supported
Fast Sampling Support
Samples ready within 3–7 days for custom OEM & ODM orders. Flexible customization solutions are available to match your unique product requirements.
Advanced Production Equipment & Stable Quality
Equipped with professional automated production lines and sophisticated testing machinery, enabling consistent, reliable product quality across all batches.
Mass Production & On-Time Shipment
Efficient full-scale manufacturing capacity ensures finished goods can be delivered within 15–20 working days, guaranteeing punctual shipment schedules.
ISO Standard Strict Quality Control
All production follows strict ISO 9001 standards. Each shipment carries a complete quality inspection certificate to satisfy factory release specifications.
Description
This air filter targets industries reliant on liquid storage or processing tanks, such as pharmaceuticals, food and beverage, and chemical manufacturing, where air quality and tank integrity are critical. The “sealed” feature addresses a key pain point – preventing cross-contamination between the tank’s internal liquid and external air, which is vital for compliance with safety standards. The “fine efficiency” highlights its ability to filter out micro-particles, reducing the risk of product spoilage or equipment damage. Compared to standard filters, its focus on liquid tank compatibility and enhanced sealing gives it a competitive edge in niche industrial markets. The extended title broadens its appeal by emphasizing multi-layer filtration, appealing to buyers seeking comprehensive contaminant removal.
Technical Parameters
| Size(H*W*D) (mm) |
Rated airflow (m³/h) |
Initial resistance (<=pa) |
Final resistance (pa) |
Filtration area (m²) |
Dust capacity (g) |
Efficiency |
| 510*510*69 | 600 | 200 | 400~600 | 6.6 | 400 | >=H14 |
| 636*636*69 | 1000 | 200 | 400~600 | 10.7 | 650 | >=H14 |
| 596*1196*69 | 1800 | 200 | 400~600 | 18.3 | 1100 | >=H14 |
| 636*1236*69 | 2100 | 200 | 400~600 | 21.3 | 1000 | >=H14 |
| 346*346*93 | 400 | 200 | 400~600 | 4.2 | 250 | >=H14 |
| 510*510*93 | 900 | 200 | 400~600 | 9.42 | 565 | >=H14 |
| 636*636*93 | 1500 | 200 | 400~600 | 14.9 | 900 | >=H14 |
| 636*941*93 | 2000 | 200 | 400~600 | 22.3 | 1200 | >=H14 |
| 626*1226*93 | 2800 | 200 | 400~600 | 29.8 | 1800 | >=H14 |
| 621*621*93 | 1380 | 200 | 400~600 | 14.19 | 851 | >=H14 |
| 636*1246*93 | 2800 | 200 | 400~600 | 29.8 | 1800 | >=H14 |
| 596*1196*93 | 2550 | 200 | 400~600 | 26.28 | 1577 | >=H14 |
| 656*994*93 | 2350 | 200 | 400~600 | 24.15 | 1449 | >=H14 |
| 350*350*96 | 500 | 200 | 400~600 | 4.68 | 300 | >=H14 |
| 514*514*96 | 1000 | 200 | 400~600 | 10.62 | 650 | >=H14 |
| 640*640*96 | 1500 | 200 | 400~600 | 16.8 | 1000 | >=H14 |
Standard Model Options
| Item | Specification |
|---|---|
| Product Name | Liquid Tank Seal Mini-Pleat HEPA Filter |
| Filter Type | Terminal HEPA Air Filter |
| Efficiency Grade | H14 |
| Filter Media | Ultra-Fine Fiberglass Paper |
| Structure | Mini-Pleat Construction |
| Seal Type | Liquid Gel Seal |
| Frame Material | Aluminum Alloy |
| Initial Resistance | 200 Pa |
| Recommended Final Resistance | 400–600 Pa |
| Dust Holding Capacity | Up to 1800 g |
| Installation | Gel Seal Ceiling Housing / FFU |
| Typical Airflow | 400–2800 m³/h |
| Service Life | Long Operating Life |
Applications
| Pharmaceutical Cleanrooms | Semiconductor Manufacturing | Hospital & Healthcare | FFU & Vertical Laminar Flow Systems |
|---|---|---|---|
| Terminal filtration for sterile production, GMP manufacturing, and pharmaceutical filling lines. | High-efficiency filtration for semiconductor fabrication, microelectronics, and precision assembly areas. | Clean air supply for operating theatres, isolation wards, biological laboratories, and healthcare facilities. | Designed for vertical laminar airflow cleanrooms, FFUs, clean benches, and ceiling terminal filter systems requiring leak-free sealing. |
Customization & Quality Control
| Customization Available | Quality Inspection |
|---|---|
| • Custom filter dimensions and thickness • H13 / H14 / U15 efficiency options • Gel seal groove customization • Aluminum or stainless steel frame options • Custom airflow and pressure-drop design • OEM logo and packaging service • Project-specific cleanroom solutions • Sample production available |
• Frame dimension inspection • Mini-pleat spacing verification • Gel seal integrity inspection • Aluminum frame assembly inspection • Initial pressure-drop testing • Airflow performance verification • Filtration efficiency testing (EN1822 available) • Final appearance and packaging inspection before shipment |
