Industrial Primary Activated Carbon Pocket Bag True Air Filter for Odor Removing

Industrial Primary Activated Carbon Pocket Bag True Air Filter for Odor Removing

Features

The flter bag is composited by high-adsorption activated carbon fiber and filter meda.It can be used to remove the odour and other volatile organic pollutants in the air.

Fast Sampling Support

Samples ready within 3–7 days for custom OEM & ODM orders. Flexible customization solutions are available to match your unique product requirements.

Advanced Production Equipment & Stable Quality

Equipped with professional automated production lines and sophisticated testing machinery, enabling consistent, reliable product quality across all batches.

Mass Production & On-Time Shipment

Efficient full-scale manufacturing capacity ensures finished goods can be delivered within 15–20 working days, guaranteeing punctual shipment schedules.

ISO Standard Strict Quality Control

All production follows strict ISO 9001 standards. Each shipment carries a complete quality inspection certificate to satisfy factory release specifications.

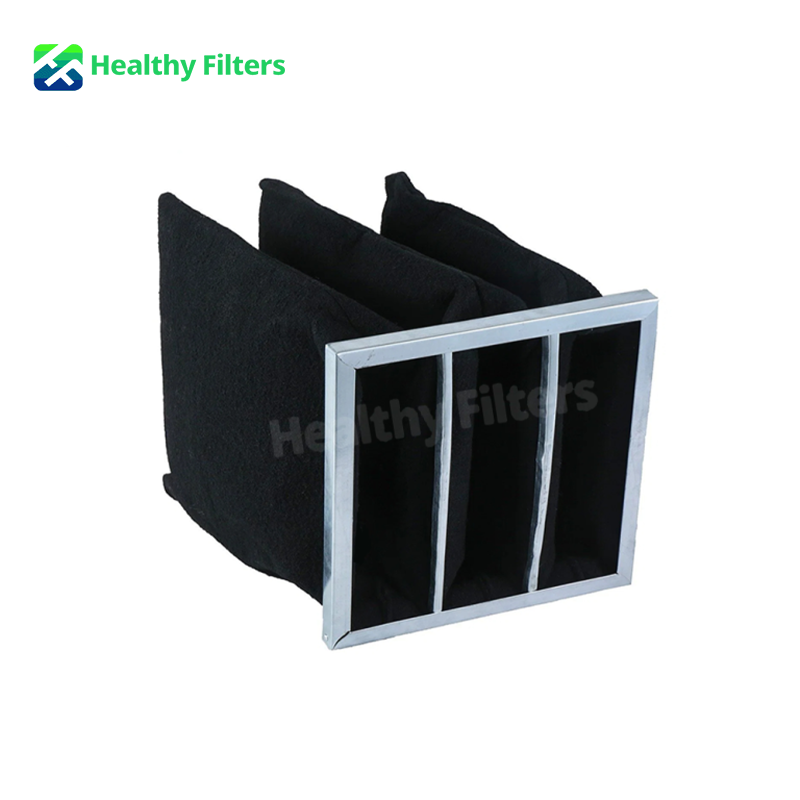

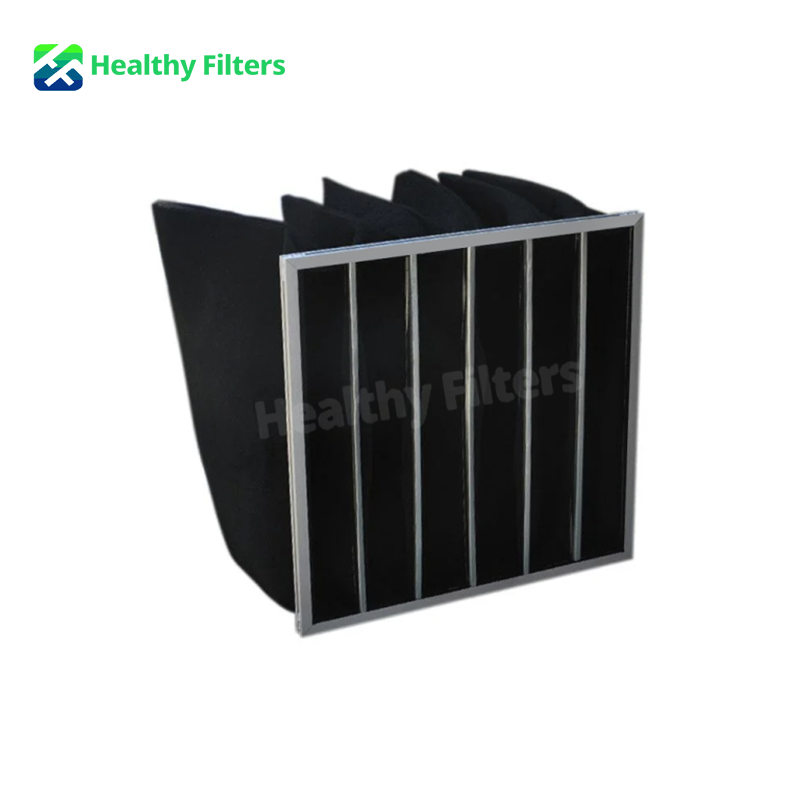

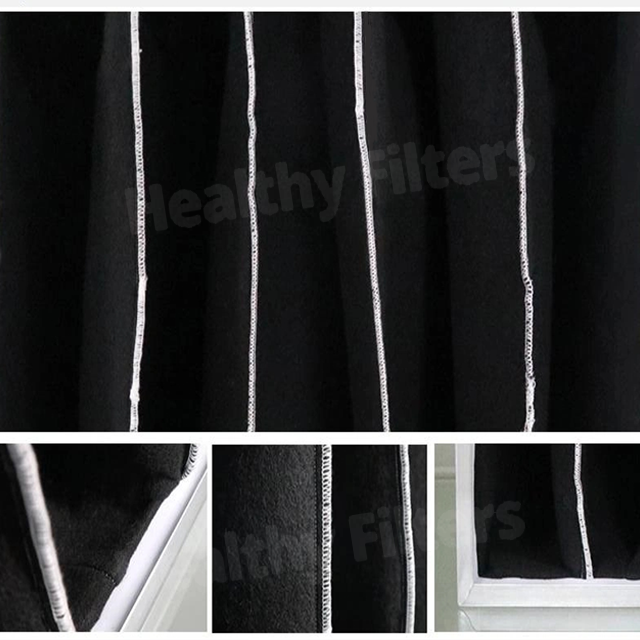

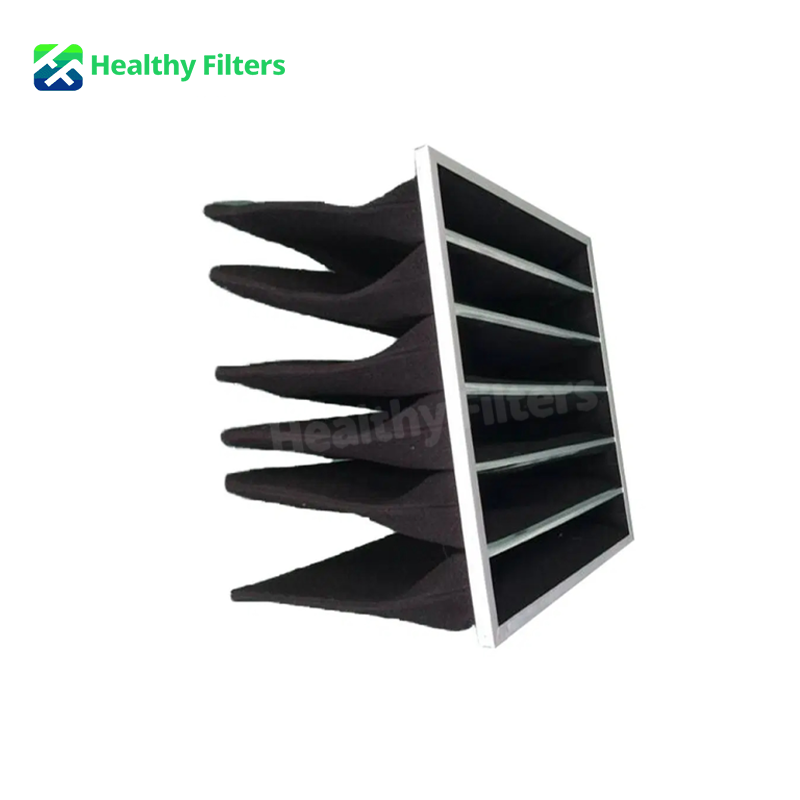

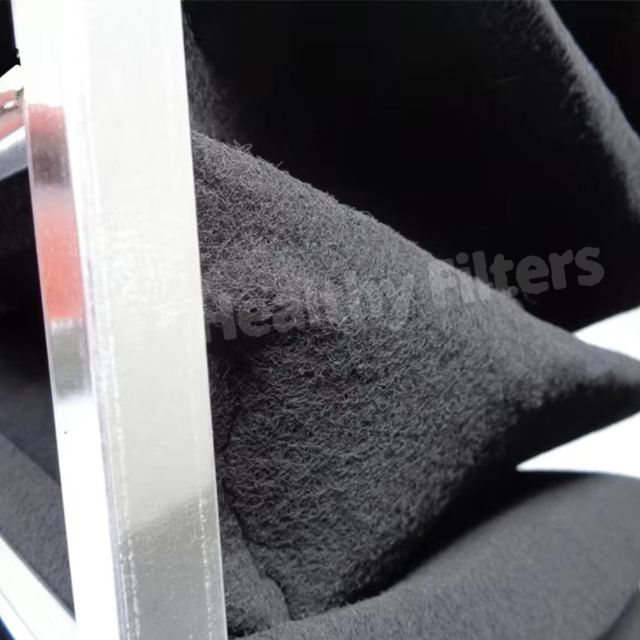

The activated carbon filter bag is crafted using high-quality primary effect non-woven fabric and features a “V” type ultrasonic stitching. A metal strip is integrated between each filter bag to enhance strength and prevent friction-induced damage and bursting when exposed to high wind speeds. This design maximizes the effective filtering area, increases dust holding capacity, and extends the service life. Replacement of the filter bag is convenient and quick, significantly reducing operational costs.

Carbon Bag Filters are filters made from a media infused with activated carbon. They effectively control grease and odors in kitchen extract systems. These filters consist of pockets sewn with a special carbon impregnated media, which are then mounted onto a metal frame. By fitting into the ductwork, they capture grease and cooking smells. To ensure clean and safe ventilation in the kitchen, it is important to regularly replace these Carbon Bag Filters.

FEATURES

  • The filter material is high-quality activated carbon cotton
  • Large air volume, low resistance and high efficiency
  • Strong adsorption capacity
  • Frame:Aluminum Galvanized or Plastic
  • Strong ability to absorb peculiar smell
  • Size:Customized
  • Can also be produced in flat and box types
APPLICATIONS

The activated carbon filter bag is suitable for exhaust gas filtration in various ventilation systems, air conditioning systems, and dust removal systems. It is also effective for the purification of indoor odors or toxic gases, making it versatile for multiple applications in maintaining clean and safe air quality.

SPECIFICATIONS

Type Size(mm) Pockets Filter Area Class(㎡) Rated Airflow(m³/h) Initial Pressure Drop (Pa)
HF-HXT-G3 287x592x600 3 2.3 1700 20
490x592x600 5 3.8 2800 20
592x592x600 6 4.5 3400 20
HF-HXT-G4 287x592x600 3 2.3 1900 50
490x592x600 5 3.8 3000 50
592x592x600 6 4.5 3600 50
HF-HXT-F5 287x592x600 3 2.3 2100 60
490x592x600 5 3.8 3650 60
592x592x600 6 4.5 4250 60

PRODUCT DETAILS

Industrial Primary Activated Carbon Pocket Bag True Air Filter for Odor Removing (1) Industrial Primary Activated Carbon Pocket Bag True Air Filter for Odor Removing (1) Industrial Primary Activated Carbon Pocket Bag True Air Filter for Odor Removing (1)
