Activated Carbon Bag Filter Activated Carbon Honeycomb
Activated Carbon Bag Filter Activated Carbon Honeycomb
Features
- Premium activated carbon synthetic fiber media for efficient odor and gas removal
- High dust holding capacity with extended service life
- Multi-pocket bag design maximizes filtration surface area
- Low pressure drop for energy-efficient HVAC operation
- Excellent adsorption of VOCs, smoke, formaldehyde, and airborne odors
- Reinforced U-shaped pocket construction for improved durability
- Aluminum alloy or galvanized steel frame options
- Stable airflow performance under continuous operation
- Easy installation and replacement
- OEM & ODM manufacturing available
Fast Sampling Support
Samples ready within 3–7 days for custom OEM & ODM orders. Flexible customization solutions are available to match your unique product requirements.
Advanced Production Equipment & Stable Quality
Equipped with professional automated production lines and sophisticated testing machinery, enabling consistent, reliable product quality across all batches.
Mass Production & On-Time Shipment
Efficient full-scale manufacturing capacity ensures finished goods can be delivered within 15–20 working days, guaranteeing punctual shipment schedules.
ISO Standard Strict Quality Control
All production follows strict ISO 9001 standards. Each shipment carries a complete quality inspection certificate to satisfy factory release specifications.
Description

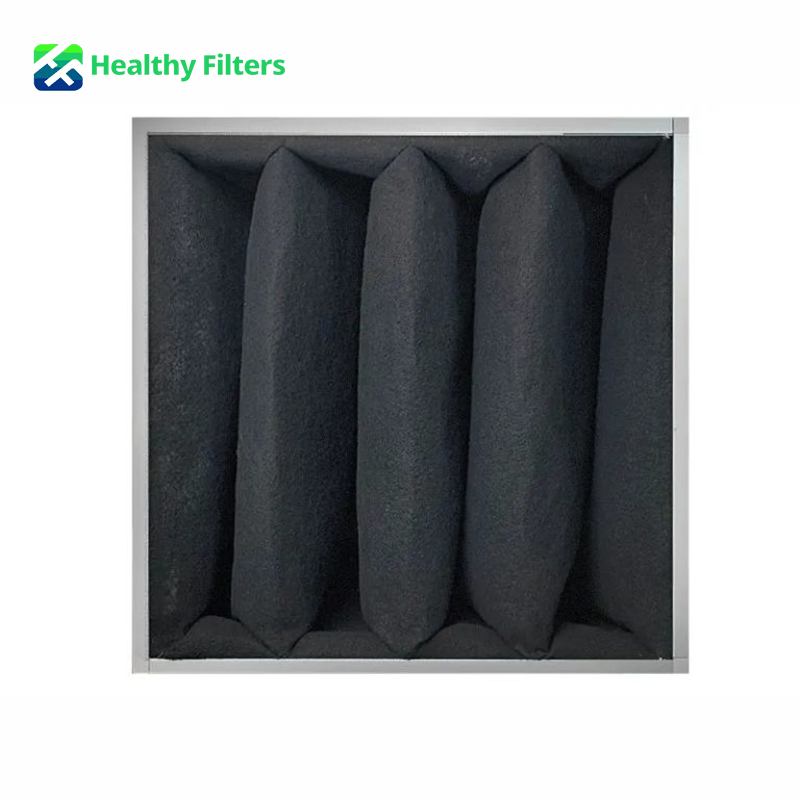

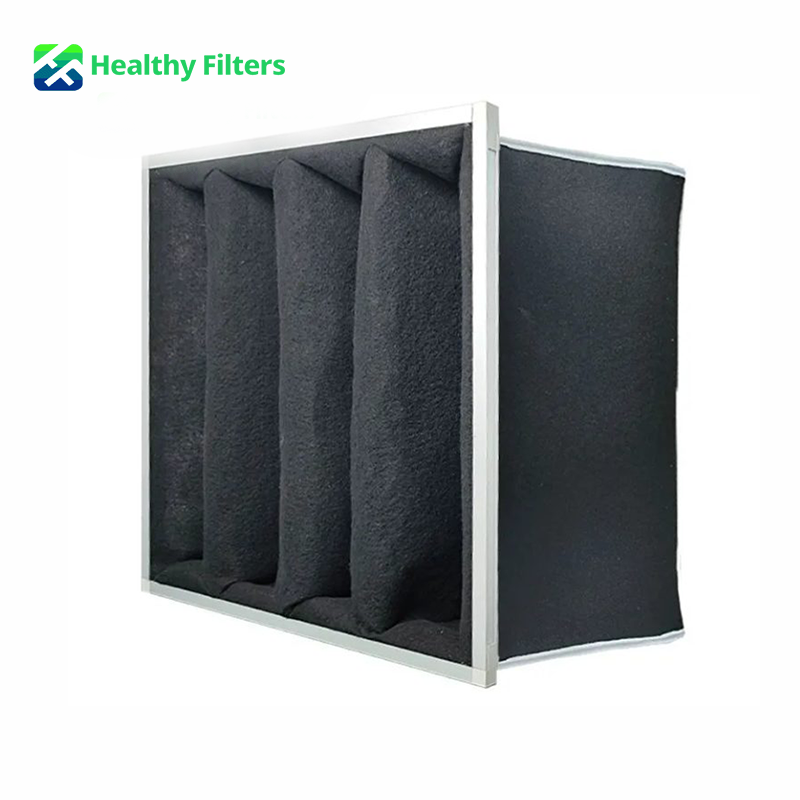

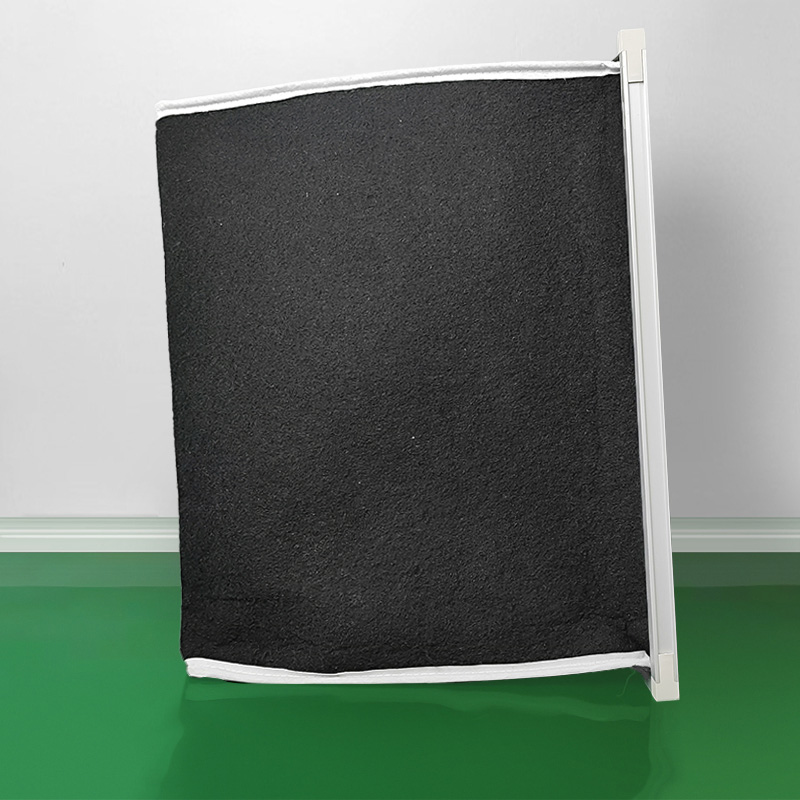

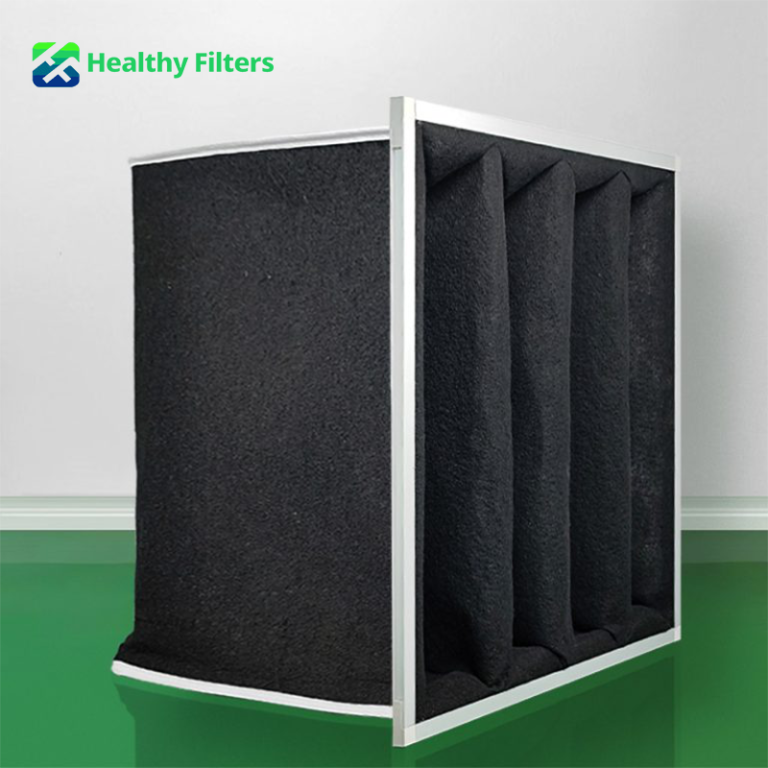

The Activated Carbon Bag Air Filter combines efficient particulate filtration with activated carbon adsorption to improve indoor air quality in demanding ventilation systems. Its activated carbon-loaded synthetic fiber media removes airborne particles while effectively adsorbing odors, volatile organic compounds (VOCs), smoke, and other gaseous pollutants.

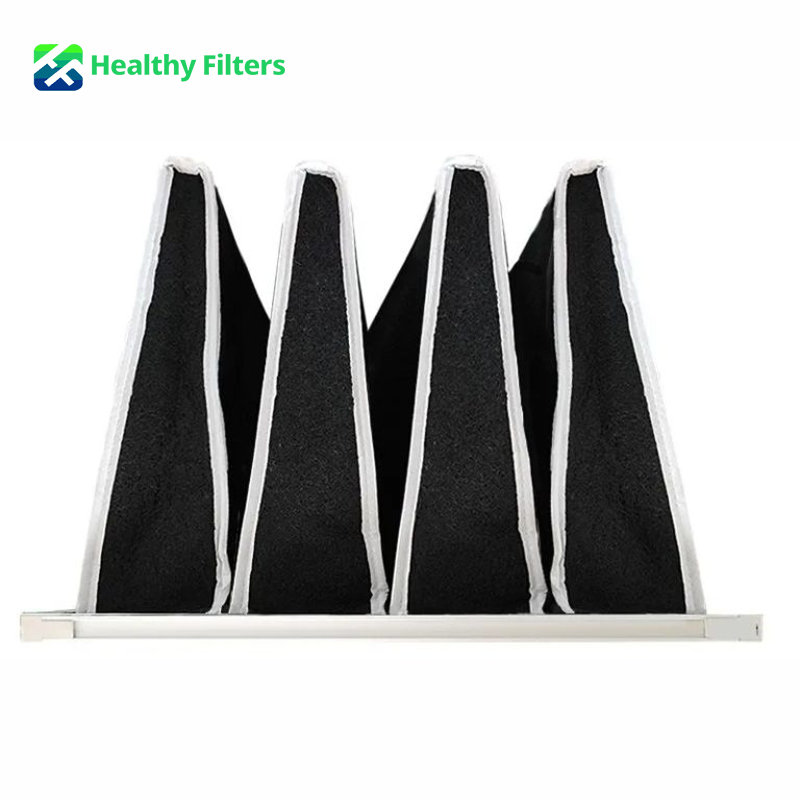

The reinforced multi-pocket construction creates a larger effective filtration area than flat panel filters, allowing higher airflow, lower resistance, and increased dust holding capacity. The pockets are securely supported to maintain their shape during continuous operation, preventing collapse and ensuring consistent filtration performance.
Designed for commercial HVAC systems, industrial ventilation, and odor control applications, this filter provides reliable, long-lasting performance with minimal maintenance.
Technical Parameters
| Activated carbon bag filter | |||||
| Class | Size(mm) W×H×D |
Bages | Rated alr flow(m³/h) | Initial resistance(Pa) | Suggested final and initial resistance(Pa) |
| 35%(G4 ) | 290×595×381 | 3 | 1500 | 40 | 220 |
| 35%(G4 ) | 490×595×381 | 5 | 3000 | 40 | 220 |
| 35%(G4 ) | 595×595×381 | 6 | 3400 | 40 | 220 |
| Note: The air volume varies at different wind speeds, and special sizes can be customized according to the customer’s URS. | |||||
Standard Model Options
| Item | Description |
|---|---|
| Product Name | Activated Carbon Bag Air Filter |
| Filter Type | Pocket Bag Air Filter |
| Frame Material | Aluminum Alloy / Galvanized Steel |

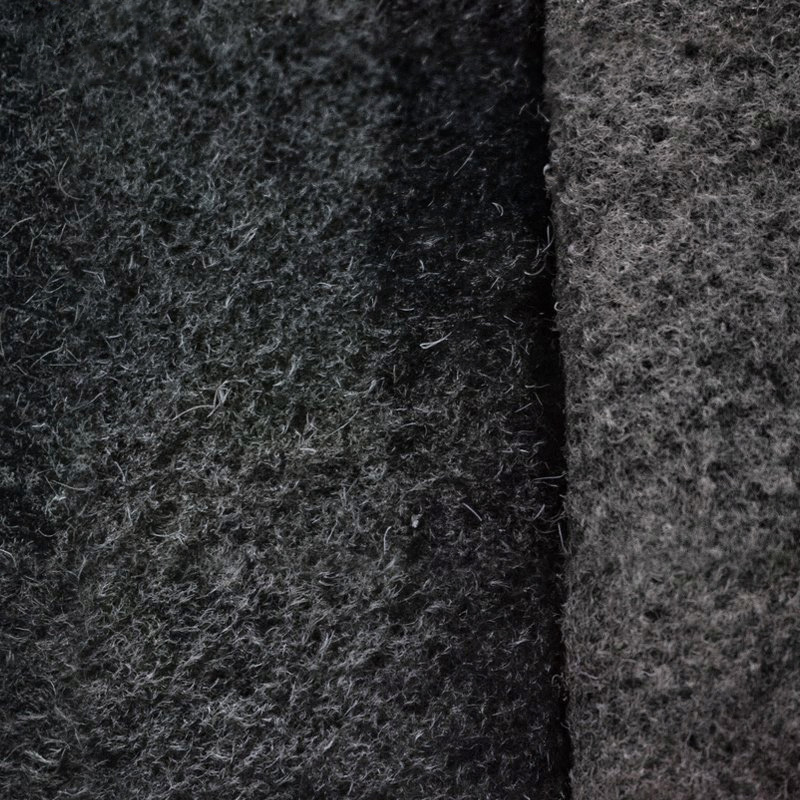

| Filter Media | Activated Carbon Synthetic Fiber |
| Pocket Material | Carbon-Loaded Non-Woven Fabric |
| Pocket Quantity | 3 / 5 / 6 / 8 Pockets (Custom Available) |
| Filter Class | G4 (Standard) / Custom Options |
| Filtration Function | Particle Filtration & Molecular Adsorption |
| Installation | AHU / HVAC / Ventilation Systems |
| OEM / ODM | Available |
Applications
| Commercial HVAC & Office Buildings | Healthcare & Public Facilities | Industrial Ventilation Systems | Odor Control & Indoor Air Purification |
|---|---|---|---|
| Ideal for office buildings, shopping malls, schools, hotels, and commercial air handling systems where both particulate filtration and odor reduction are required to maintain healthy indoor air quality. | Suitable for hospitals, laboratories, clinics, airports, and public buildings to help reduce airborne contaminants, odors, and low-concentration gaseous pollutants. | Widely used in electronics manufacturing, printing facilities, food processing plants, chemical workshops, and industrial ventilation systems to improve workplace air quality and reduce VOC emissions. | Recommended for commercial kitchens, restaurants, waste treatment facilities, smoking areas, and ventilation systems where activated carbon filtration effectively removes unpleasant odors and harmful gases. |
Customization & Quality Control
| Customization Services | Quality Assurance & Inspection |
|---|---|
| • Custom filter dimensions, pocket depths, and frame thicknesses • 3, 5, 6, 8, or custom pocket configurations • Aluminum alloy, galvanized steel, or stainless steel frame options • Customized activated carbon loading for enhanced odor and VOC adsorption • Synthetic fiber, carbon fiber, or composite media selections • Optional flame-retardant or moisture-resistant media • OEM logo printing, private labeling, and custom packaging • Manufacturing according to customer drawings or samples • Export packaging and pallet configuration • Flexible OEM production with low MOQ support |
• Incoming inspection of activated carbon media and frame materials • Pocket stitching strength and dimensional accuracy verification • Activated carbon distribution consistency inspection • Airflow and pressure-drop performance testing • Frame assembly and structural integrity inspection • Seal and edge reinforcement verification • Appearance, labeling, and packaging inspection • Batch identification and complete production traceability • Random performance sampling before shipment • Final quality inspection to ensure product consistency |
