Aluminum Alloy Frame Activated Carbon Pocket Bag Air Filter Manufacturers
Aluminum Alloy Frame Activated Carbon Pocket Bag Air Filter Manufacturers
Features
- Premium activated carbon media for effective odor and VOC removal
- Lightweight, corrosion-resistant aluminum alloy frame
- Multi-pocket design provides a large effective filtration area
- High dust holding capacity for extended filter life
- Low pressure drop reduces HVAC operating costs
- Excellent adsorption of smoke, formaldehyde, ammonia, and other gaseous pollutants
- Stable airflow performance under continuous operation
- Available in multiple pocket configurations (4P, 5P, 6P, 8P)
- Easy installation and maintenance
- OEM & ODM manufacturing available
Fast Sampling Support
Samples ready within 3–7 days for custom OEM & ODM orders. Flexible customization solutions are available to match your unique product requirements.
Advanced Production Equipment & Stable Quality
Equipped with professional automated production lines and sophisticated testing machinery, enabling consistent, reliable product quality across all batches.
Mass Production & On-Time Shipment
Efficient full-scale manufacturing capacity ensures finished goods can be delivered within 15–20 working days, guaranteeing punctual shipment schedules.
ISO Standard Strict Quality Control
All production follows strict ISO 9001 standards. Each shipment carries a complete quality inspection certificate to satisfy factory release specifications.
Description

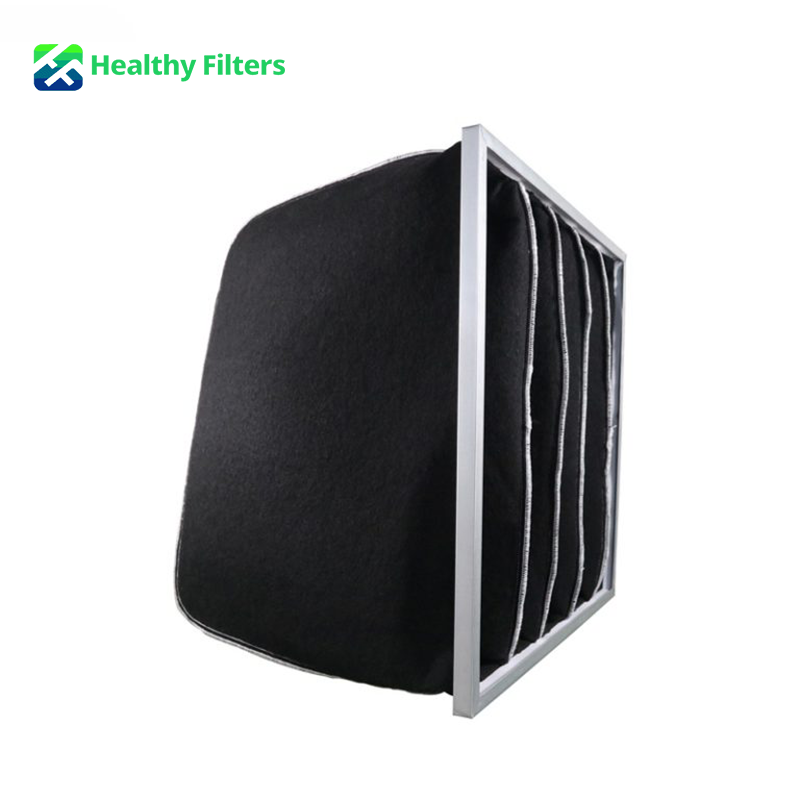

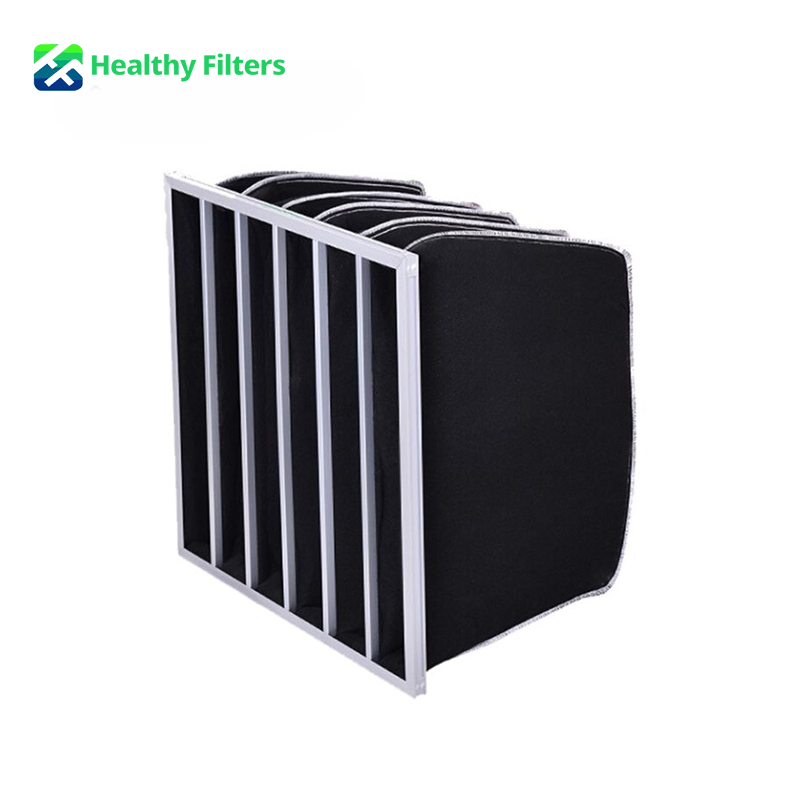

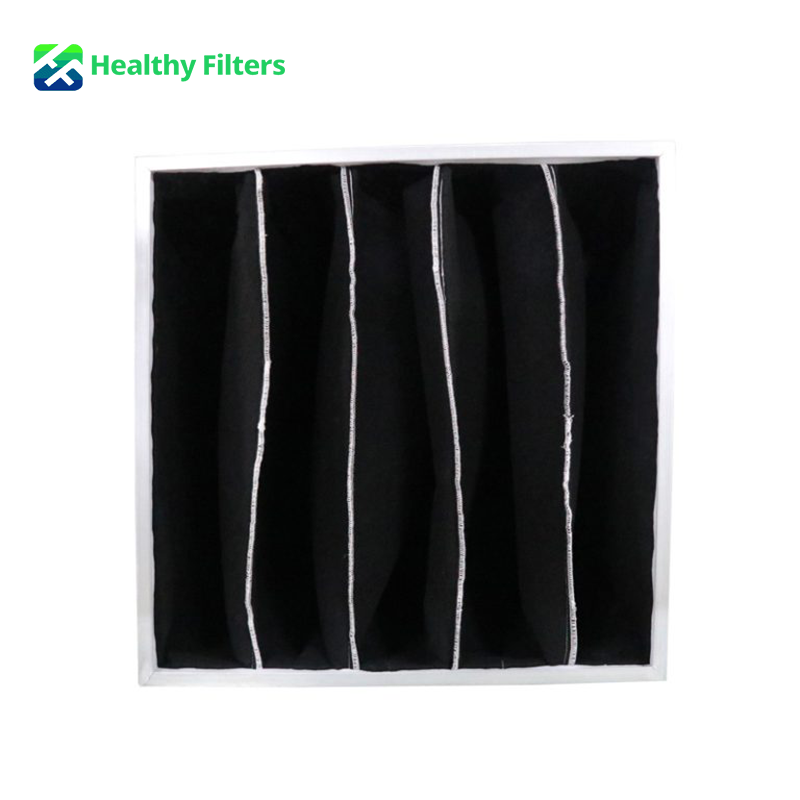

The Aluminum Frame Activated Carbon Pocket Air Filter combines high-efficiency particulate filtration with activated carbon adsorption technology to improve indoor air quality in demanding ventilation systems.

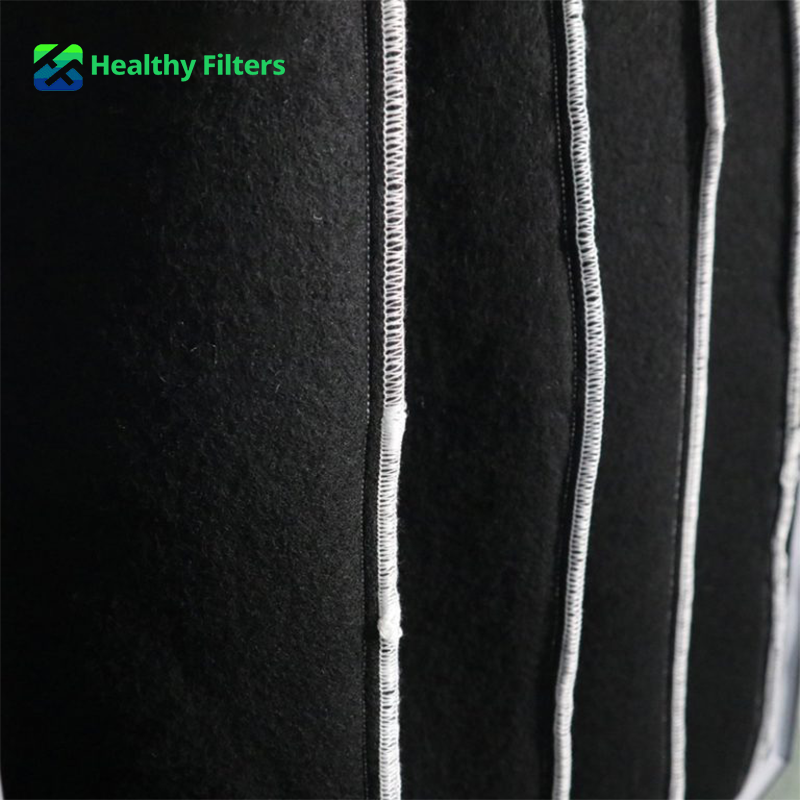

The activated carbon media efficiently removes unpleasant odors, VOCs, chemical vapors, and airborne gases, while the deep pocket structure captures dust and airborne particles without significantly restricting airflow. Compared with conventional panel filters, the pocket design offers a much larger filtration surface, resulting in higher dust loading capacity and longer service intervals.
The rigid aluminum alloy frame provides excellent structural stability and corrosion resistance, making the filter suitable for long-term operation in commercial HVAC systems, industrial ventilation equipment, and odor control applications.
Technical Parameters
| Model | Size (mm) |
Bag (pc) |
CMH | I.N.P (Pa) |
Filter area (m2) |
Comprehensive adsorption Rate (%) |
CTC (%) |
Benzene (%) | Deodorizing Performance (30mins) |
| ACDS7738-8P | 595*595*381 | 8 | 2200/3400 | <35/55 | 4.82 | >90% | >50% | >60% | >95% |
| ACDS7738-6P | 595*595*381 | 6 | 2200/3400 | <40/60 | 3.75 | >90% | >50% | >60% | >95% |
| ACDS5538-5P | 495*495*381 | 5 | 2000/3000 | <40/60 | 2.69 | >90% | >50% | >60% | >95% |
| ACDS1738-4P | 295*595*381 | 4 | 1100/1700 | <40/60 | 2.06 | >90% | >50% | >60% | >95% |
| ACDS7755-8P | 595*595*550 | 8 | 2200/3400 | <30/45 | 6.71 | >90% | >50% | >60% | >95% |
| ACDS7755-6P | 595*595*550 | 6 | 2200/3400 | <35/50 | 5.21 | >90% | >50% | >60% | >95% |
| ACDS5555-5P | 495*495*550 | 5 | 2000/3000 | <35/50 | 3.74 | >90% | >50% | >60% | >95% |
| ACDS1755-4P | 295*595*550 | 4 | 1100/1700 | <35/50 | 2.87 | >90% | >50% | >60% | >95% |
Standard Model Options
| Item | Description |
|---|---|
| Product Name | Aluminum Frame Activated Carbon Pocket Air Filter |
| Filter Type | Activated Carbon Pocket Filter |
| Frame Material | Aluminum Alloy |
| Filter Media | Activated Carbon Synthetic Fiber |
| Pocket Material | Carbon-Loaded Non-Woven Fabric |
| Pocket Quantity | 4P / 5P / 6P / 8P |
| Filtration Function | Particle Filtration & Gas Adsorption |
| Carbon Performance | VOC & Odor Removal |
| Installation | AHU / HVAC Systems |
| OEM / ODM | Available |
Applications
| Commercial HVAC & Office Buildings | Industrial Manufacturing & Process Ventilation | Healthcare, Hospitality & Public Facilities | Odor Control & Air Purification Systems |
|---|---|---|---|
| Suitable for office buildings, shopping malls, hotels, schools, airports, and commercial ventilation systems to improve indoor air quality by removing airborne particles, odors, and volatile organic compounds. | Widely used in electronics manufacturing, chemical plants, printing workshops, automotive production, and industrial ventilation systems where gaseous pollutants and airborne contaminants must be controlled. | Ideal for hospitals, laboratories, pharmaceutical facilities, exhibition centers, restaurants, and public buildings requiring cleaner air and effective odor reduction. | Recommended for waste treatment facilities, commercial kitchens, smoking areas, food processing plants, and air purification systems where activated carbon filtration helps eliminate unpleasant odors and harmful gases. |
Customization & Quality Control
| Customization Services | Quality Assurance & Inspection |
|---|---|
| • Custom filter dimensions, pocket depths, and frame thicknesses • 4P, 5P, 6P, 8P, or custom pocket configurations • Activated carbon loading optimized for specific VOCs or odor control requirements • Optional synthetic fiber, carbon fiber, or composite filtration media • Customized airflow capacity and pressure-drop performance • Aluminum, galvanized steel, or stainless steel frame alternatives • Gasket installation, logo printing, and private label packaging • OEM production based on technical drawings or samples • Export packaging and pallet configuration • Flexible MOQ and bulk manufacturing support |
• Incoming inspection of aluminum frames and activated carbon media • Pocket stitching strength and dimensional accuracy verification • Activated carbon loading consistency inspection • Airflow and pressure-drop performance testing • Adsorption efficiency verification for odor and VOC removal (upon request) • Frame assembly, seal integrity, and structural strength inspection • Appearance, labeling, and packaging quality checks • Batch identification and full production traceability • Random sampling for performance consistency • Final quality inspection before shipment |
