H13 H14 Fiberglass PP Fiber Hepa Media Filter Paper Roll Mini Pleat HEPA Filter Media Pack
H13 H14 Fiberglass PP Fiber Hepa Media Filter Paper Roll Mini Pleat HEPA Filter Media Pack
Features
Glass fiber filters feature fast flow rates, high loading capacity, wide-range thermal tolerance, and excellent precipitate retention. Glass fiber filters are fabricated from binder-free borosilicate glass fiber with extremely high maximum operating temperatures in air.
- Superior Filtration Efficiency:Rated at H13/H14 HEPA filtration standards, capturing 99.97% of particles as small as 0.3 microns.Ensures the highest level of air cleanliness, crucial for sensitive environments.
- High-Quality Fiberglass Material:Made from premium fiberglass, offering durability and high performance. Resistant to moisture and chemicals, ensuring a long lifespan and consistent efficiency.
Fast Sampling Support
Samples ready within 3–7 days for custom OEM & ODM orders. Flexible customization solutions are available to match your unique product requirements.
Advanced Production Equipment & Stable Quality

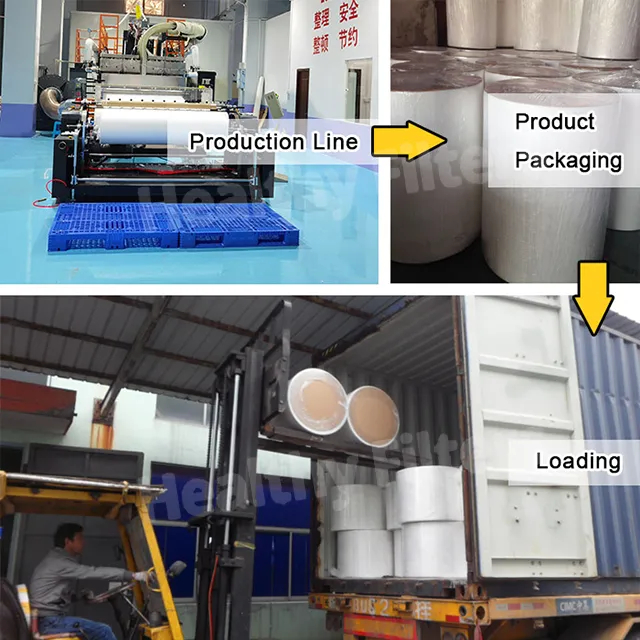

Equipped with professional automated production lines and sophisticated testing machinery, enabling consistent, reliable product quality across all batches.
Mass Production & On-Time Shipment
Efficient full-scale manufacturing capacity ensures finished goods can be delivered within 15–20 working days, guaranteeing punctual shipment schedules.
ISO Standard Strict Quality Control
All production follows strict ISO 9001 standards. Each shipment carries a complete quality inspection certificate to satisfy factory release specifications.
Description
Glass fiber filter media are primarily composed of glass microfibers and are produced using a wet-laid process similar to paper manufacturing. Our product range includes various ASHRAE grades (F6-F9), HEPA grades (H10-H14), and ULPA grades (U15-U16). These products offer excellent dust-holding capacity and provide the highest available efficiency with minimal airflow resistance. Our products are available in laminated form to meet specific air filtration requirements.
It is the raw material for the production of diaphragm filters, non-diaphragm filters, combined filters, and high-efficiency HEPA filters.
Nontoxic, odorless, white and light. Even distribution, high strength, low resistance and high efficiency. Water-proof, can stand the temperature as high as 250°C
- Low-resistance
- High Efficiency
- Good air ventilation.
- Temperature resistance 130-250 degrees
- Media: Glassfiber
- Size:Customized
Technical Parameters
| Model | Resistance（Pa） | Efficiency(%) | Weight per ㎡ | Thickness |
| （g/㎡） | （mm） | |||
| F7 | ≦30 | ≧40 | 70±5 | 0.33±0.02 |
| F8 | ≦55 | ≧60 | 70±5 | 0.33±0.02 |
| F9 | ≦80 | ≧80 | 70±5 | 0.33±0.02 |
| H10 | ≦115 | ≧95 | 75±5 | 0.33±0.02 |
| H11 | ≦200 | ≧99 | 75±5 | 0.33±0.02 |
| H12 | ≦250 | ≧99.5 | 75±5 | 0.33±0.02 |
| H13 | ≦330 | ≧99.95 | 75±5 | 0.33±0.02 |
| H14 | ≦420 | ≧99.995 | 75±5 | 0.33±0.02 |
| H15 | ≦480 | ≧99.9995 | 75±5 | 0.33±0.02 |
Standard Model Options
| Item | Specification |
|---|---|
| Product Name | Fiberglass HEPA Filter Media Roll |
| Product Type | Mini-Pleat Filter Paper / Air Filter Raw Material |
| Model Series | HF-FG |
| Filter Media | Fiberglass |
| Available Grades | F7 / F8 / F9 / H10 / H11 / H12 / H13 / H14 / H15 |
| Efficiency Range | ≥40% to ≥99.9995% |
| Standard Thickness | 0.33 ± 0.02 mm |
| Basis Weight | 70 ± 5 or 75 ± 5 g/m² |
| Resistance Range | ≤30–480 Pa, depending on grade |
| Temperature Resistance | Approximately 130–250°C |

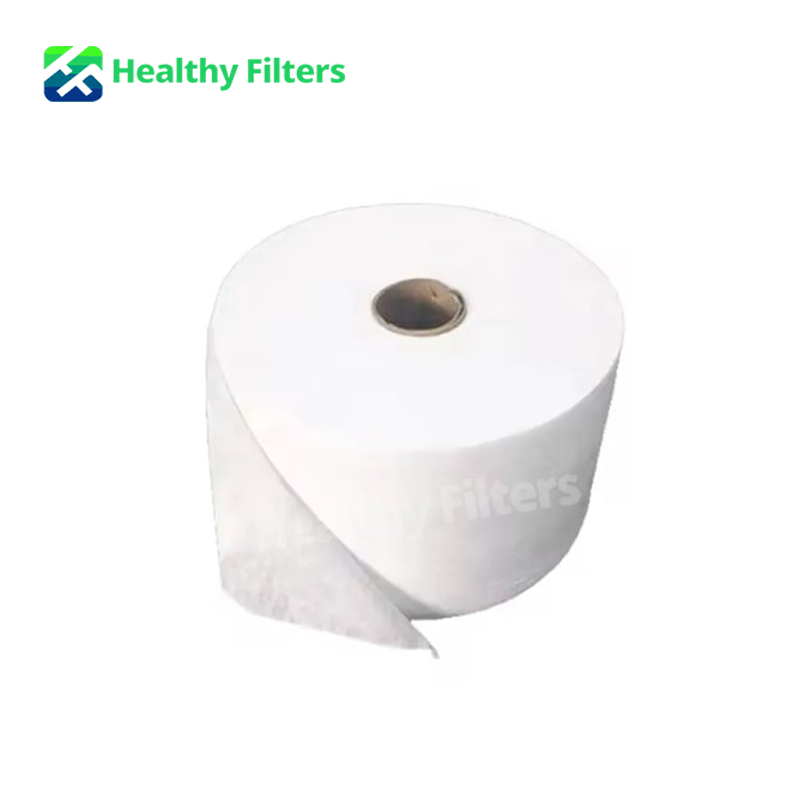

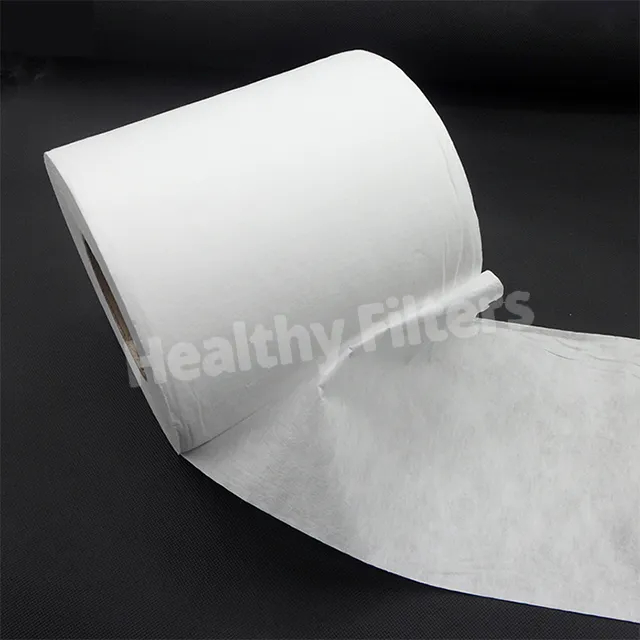

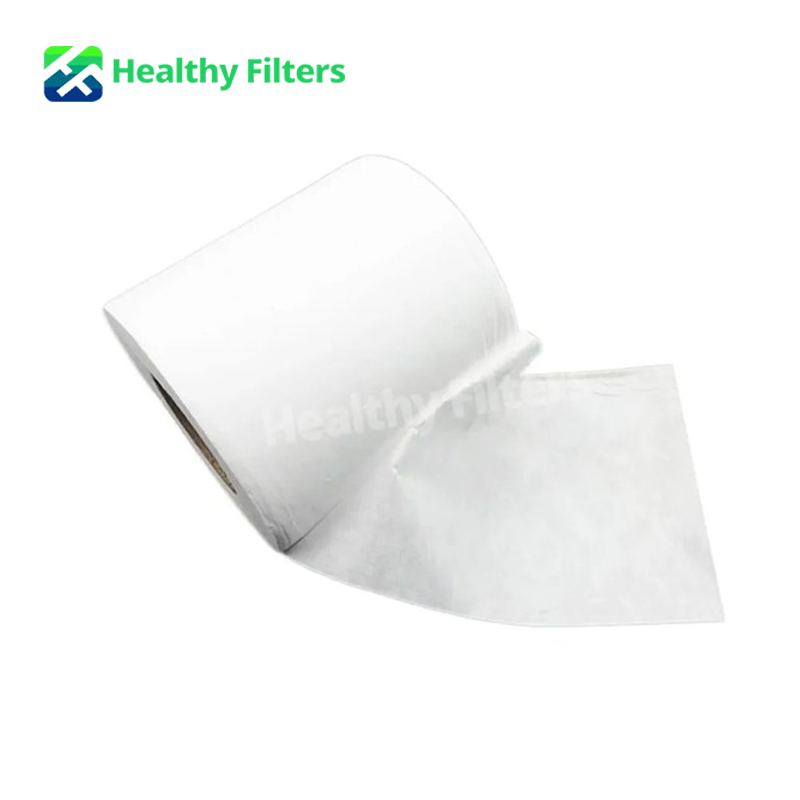

| Supply Form | Roll Media |
| Standard Color | White |
| Processing | Pleating, Slitting, Cutting, Bonding |
| Main Use | HVAC, Air Purifier, HEPA and Mini-Pleat Filter Production |
| OEM / ODM | Available |
