Products

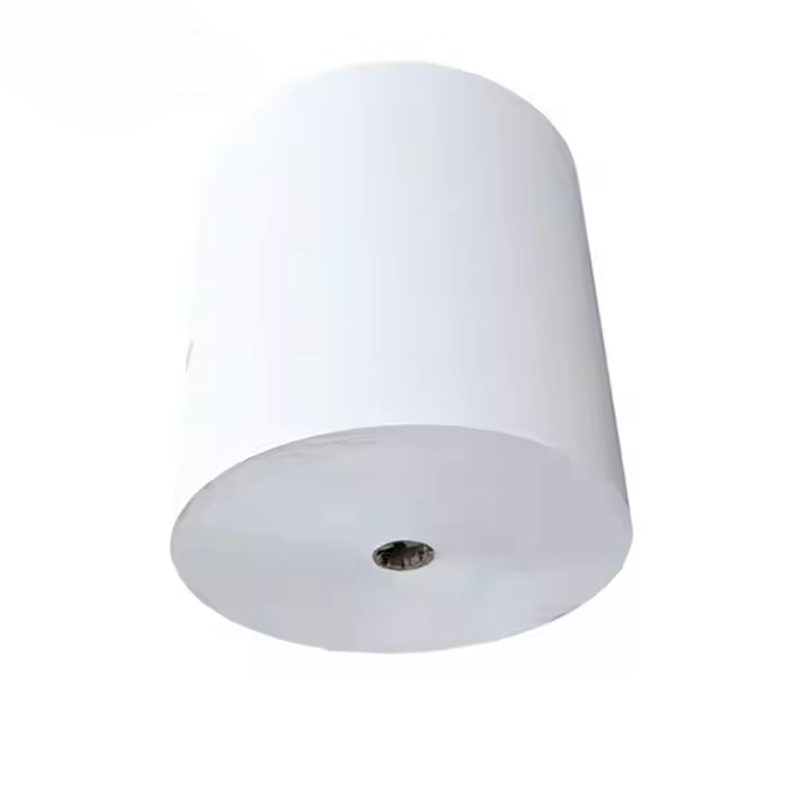

HEPA Panel Filter Glass Fiber Media Particulate Fiberglass Air Filter Paper04

HEPA Panel Filter Glass Fiber Media Particulate Fiberglass Air Filter Paper03

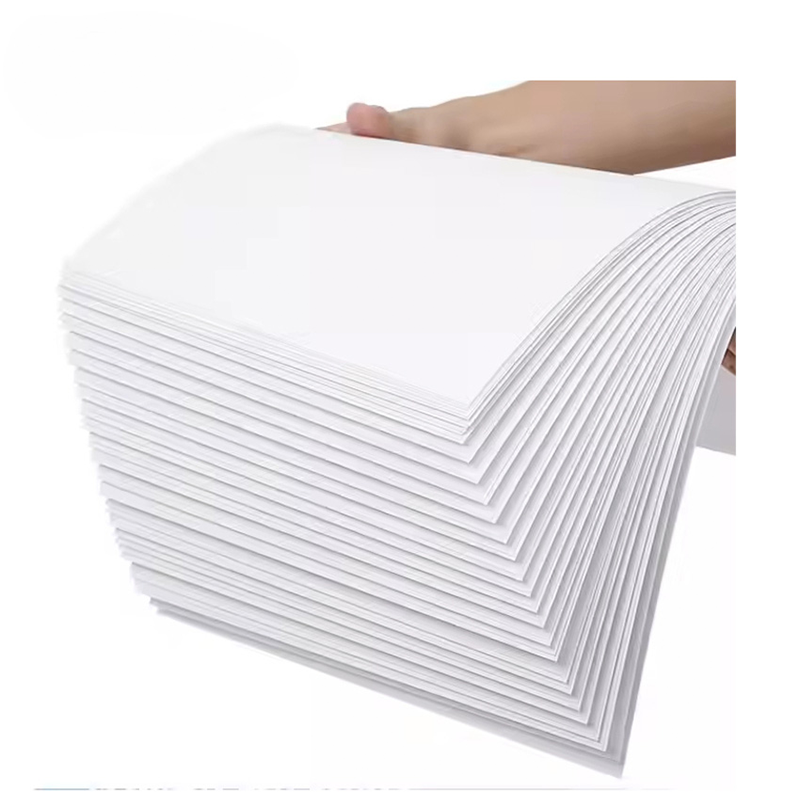

HEPA Panel Filter Glass Fiber Media Particulate Fiberglass Air Filter Paper

Features

Our HEPA Panel Filter uses high-quality Glass Fiber Media to capture particulate matter efficiently. This Fiberglass Air Filter Paper ensures superior filtration performance, ideal for maintaining clean air in HVAC systems and other applications requiring high air quality.

Filtration grades from M6 to U15
Suitable for medium-efficiency, HEPA, and ULPA filter production
Fine fiberglass structure with high particle-capture performance
Low and controlled airflow resistance
High stiffness for stable pleating and filter-pack assembly
Good longitudinal and transverse mechanical strength
Uniform thickness and basis weight
High dust-holding potential in finished pleated filters
Suitable for panel, mini-pleat, separator, and compact filters
Excellent dimensional stability during converting
Compatible with slitting, corrugating, pleating, and hot-melt separation
White media for easy visual quality inspection
Custom roll width, roll length, and filtration grade available
OEM and private-label manufacturing supported

Chat Now

Message

Fast Sampling Support

Samples ready within 3–7 days for custom OEM & ODM orders. Flexible customization solutions are available to match your unique product requirements.

Advanced Production Equipment & Stable Quality

Equipped with professional automated production lines and sophisticated testing machinery, enabling consistent, reliable product quality across all batches.

Mass Production & On-Time Shipment

Efficient full-scale manufacturing capacity ensures finished goods can be delivered within 15–20 working days, guaranteeing punctual shipment schedules.

ISO Standard Strict Quality Control

All production follows strict ISO 9001 standards. Each shipment carries a complete quality inspection certificate to satisfy factory release specifications.

The HEPA Panel Filter features Glass Fiber Media that effectively captures particulate matter. This Fiberglass Air Filter Paper provides high-efficiency filtration, ensuring clean air in various applications.

Whirlpool airflow guide design, high filtering efficiency;

V-shaped depth bearing, high dust holding capacity and low pressure;

Simple installation;

Simply recycle paint particles and dust particles;

Reproducible paper, environmental and high efficiency;

Long service life and low replacement frequency.

Technical Parameters

Filtration Grade	Thickness (mm)	Weight (g/m2)	Longitudinal Strength (KN/m)	Tensile Strength (KN/m)	Stiffness (mg)	Ignition Loss (%)	Efficiency (%)@0.3μm	Resistance (Pa)
M6	0.6±0.03	70±3	≥0.98	≥0.5	≥900	≤7	≥15	16
F7	0.6±0.03	70±3	≥0.98	≥0.5	≥900	≤7	≥50	≤38
F8	0.6±0.03	70±3	≥0.98	≥0.5	≥950	≤7	≥60	≤55
F9	0.55±0.03	70±3	≥0.98	≥0.5	≥950	≤7	≥85	≤80
H10	0.49±0.03	70±3	≥0.98	≥0.5	≥950	≤7	≥95	130-150
H11	0.49±0.03	70±3	≥0.98	≥0.5	≥950	≤7	≥99	150-170
H12	0.49±0.03	75±3	≥0.98	≥0.5	≥950	≤7	≥99.5	240-260
H13	0.49±0.03	75±3	≥0.98	≥0.5	≥950	≤7	≥99.97	310-330
H14	0.5±0.03	75±3	≥0.98	≥0.5	≥950	≤7	≥99.993	360-380
U15	0.49±0.03	75±3	≥0.98	≥0.5	≥950	≤7	≥99.998	390-420

Standard Model Options

Item	Specification
Product Name	Fiberglass Air Filter Paper Roll
Product Type	HEPA / ULPA Filter Raw Material
Model Series	HF-FG
Filter Media	Fine Fiberglass Paper
Available Grades	M6 / F7 / F8 / F9 / H10 / H11 / H12 / H13 / H14 / U15
Efficiency Range at 0.3 μm	≥15% to ≥99.9998%
Thickness Range	0.49–0.60 mm
Basis Weight	70 ± 3 or 75 ± 3 g/m²
Longitudinal Strength	≥0.98 kN/m
Transverse Strength	≥0.5 kN/m
Stiffness	≥900–950 mg
Ignition Loss	≤7%
Supply Form	Roll Media
Standard Color	White
Main Use	Panel, Mini-Pleat, HEPA and ULPA Filter Manufacturing
OEM / ODM	Available

Applications

HVAC & Commercial Filtration	Cleanroom & Pharmaceutical Filtration	Healthcare & Laboratory Systems	Electronics & Precision Manufacturing
Used in panel, compact, and high-efficiency filters for AHUs, central air-conditioning systems, commercial buildings, and industrial ventilation.	Suitable for terminal HEPA filters, ceiling modules, FFUs, sterile production rooms, and pharmaceutical clean areas.	Used in operating rooms, isolation areas, biological laboratories, clean benches, and controlled medical environments.	Applied in semiconductor, microelectronics, optics, battery, aerospace, and precision manufacturing facilities requiring controlled airborne contamination.

Customization & Quality Control

Customization Available	Quality Inspection
• Custom roll width and roll length • M6–U15 filtration-grade options • Custom thickness and basis weight • Project-specific efficiency and resistance targets • Pleating-stiffness optimization • Custom slitting and roll-core dimensions • Media for mini-pleat, separator, and panel filters • OEM labels, private branding, samples, and export packaging	• Fiberglass raw-material verification • Roll width, length, and thickness inspection • Basis-weight and media-uniformity testing • Longitudinal and transverse strength testing • Stiffness and ignition-loss verification • Airflow-resistance testing • Particle-filtration efficiency testing at agreed conditions • Final roll winding, appearance, and packaging inspection
