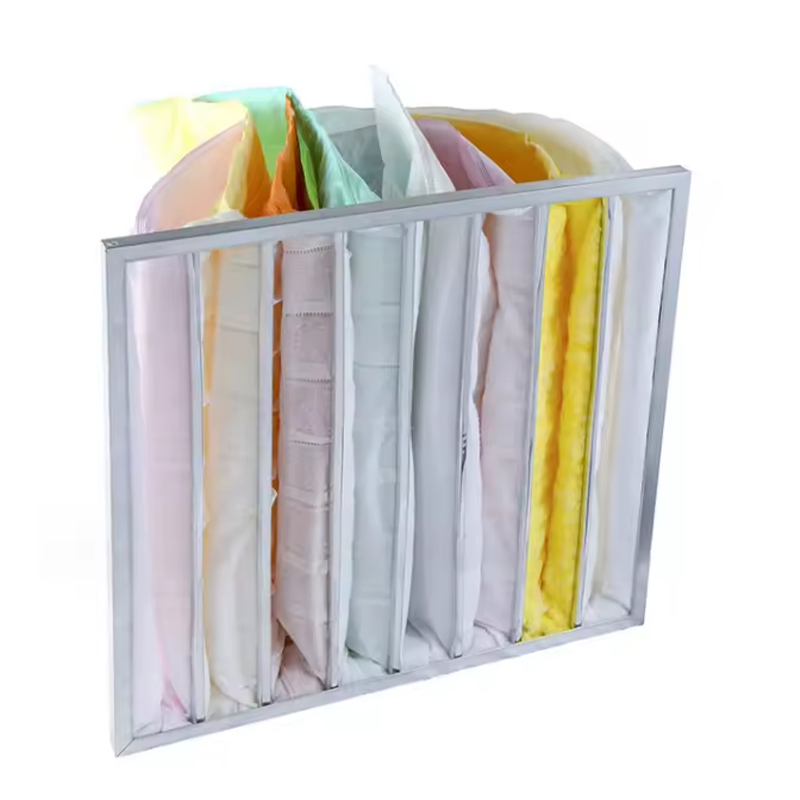

Bag Medium Synthetic Fiber Filter F6 F7 F8 Filter Fiberglass Pocket Air Filter
Bag Medium Synthetic Fiber Filter F6 F7 F8 Filter Fiberglass Pocket Air Filter
Features
- F6, F7 and F8 medium-efficiency configurations available
- Durable synthetic fiber pocket media
- Large effective filtration area
- High dust-holding capacity
- Low initial airflow resistance
- Strong pocket construction resists tearing and detachment
- Good airtightness between media and frame
- Stable performance under high airflow
- Suitable for humid operating environments
- Silicone-free configuration available
- Long service life under normal operating conditions
- Aluminum, galvanized-steel and stainless-steel frames
- Custom pocket quantity and pocket depth
- Standard and project-specific dimensions
- OEM and private-label manufacturing supported
Fast Sampling Support
Samples ready within 3–7 days for custom OEM & ODM orders. Flexible customization solutions are available to match your unique product requirements.
Advanced Production Equipment & Stable Quality
Equipped with professional automated production lines and sophisticated testing machinery, enabling consistent, reliable product quality across all batches.
Mass Production & On-Time Shipment
Efficient full-scale manufacturing capacity ensures finished goods can be delivered within 15–20 working days, guaranteeing punctual shipment schedules.
ISO Standard Strict Quality Control
All production follows strict ISO 9001 standards. Each shipment carries a complete quality inspection certificate to satisfy factory release specifications.
Description
The F6–F8 Synthetic Fiber Pocket Filter is designed for medium-efficiency particulate filtration in commercial HVAC systems, air handling units, data center cooling rooms and industrial ventilation equipment.
Manufactured with durable synthetic fiber media, the filter combines high dust-holding capacity, low airflow resistance and reliable pocket strength. The multi-pocket structure provides a large effective filtration area, helping maintain stable airflow and extend service intervals under high-air-volume and high-dust-load operating conditions.
Available with aluminum-alloy, galvanized-steel or stainless-steel frames, the filter can be customized in efficiency grade, pocket quantity, pocket depth, dimensions and media color for replacement projects and OEM air-handling equipment.
Technical Parameters
| Frame | Aluminium alloy /Galvanized steel/Stainless steel |
| Media | synthetic fiber |
| Structure | Bag or Pocket |
| Dimension | According to customers’ requirements |
| Fiber class according to EN779 | F7 ( particles ≥0.5microns ) |
| Certification | ISO9001, En779 |
Standard Model Options
| Item | Description |
|---|---|
| Product Name | Synthetic Fiber Pocket Air Filter |
| Product Type | Medium-Efficiency Bag Filter |
| Efficiency Options | F6 / F7 / F8 |
| Reference Classification | EN 779 |
| Filter Media | Synthetic Fiber |
| Structure | Multi-Pocket / Bag |
| Frame Options | Aluminum Alloy / Galvanized Steel / Stainless Steel |
| Standard Configuration | F7 available |
| Main Function | Medium-Efficiency Particulate Filtration |
| Recommended Particle Control | Fine dust and particles from approximately 0.5 μm, depending on tested configuration |
| Dust-Holding Capacity | High |
| Airtightness | Reinforced media-to-frame sealing |
| Silicone-Free Option | Available |
| Dimensions | Standard or Customized |
| OEM / ODM | Supported |
Applications
| Commercial HVAC & AHUs | Data Centers & Equipment Rooms | Industrial Manufacturing | Clean Production Support |
|---|---|---|---|
| Used as an intermediate filtration stage in central air-conditioning systems, fresh-air units and AHUs for offices, shopping centers, hotels and public buildings. | Installed in data center cooling rooms and precision air-conditioning systems to reduce fine-particle loading on coils, fans and downstream filters. | Suitable for automotive, electronics, machinery, instrumentation and general industrial ventilation systems exposed to high airflow and dust loads. | Applied in food processing, pharmaceutical support areas, precision manufacturing and other controlled environments as pre-filtration before higher-efficiency filters. |
Customization & Quality Control
| Customization Available | Quality Inspection |
|---|---|
| • Custom filter width, height and frame depth • F6, F7 and F8 media options • Custom pocket quantity and pocket depth • Synthetic media density adjustment • High dust-capacity media configurations • Aluminum, galvanized or stainless-steel frames • Reinforced seams and pocket-support structures • Silicone-free construction upon request • Airflow and pressure-drop optimization • Custom media colors for grade identification • Development from drawings or physical samples • Custom labels, barcodes and model numbers • Neutral and private-label export packaging |
• Incoming inspection of media and frame materials • Frame dimension and squareness verification • Pocket quantity and depth inspection • Sewing, ultrasonic bonding or seam-strength checks • Media-to-frame sealing inspection • Pocket alignment and structural inspection • Rated airflow and initial pressure-drop testing • Filtration-efficiency testing upon request • Airtightness and leakage inspection • Visual inspection for damaged or uneven pockets • Packaging and labeling verification • Batch traceability and pre-shipment sampling |
