Home appliance parts H13 H14 air purifier custom active carbon air filter for smoking odor removal
Home appliance parts H13 H14 air purifier custom active carbon air filter for smoking odor removal
Features
- Premium coconut shell activated carbon media
- Excellent adsorption of odors, VOCs and harmful gases
- High dust holding capacity
- Low airflow resistance
- Strong structural stability
- Good air permeability
- Available in sheets, rolls and filter pads
- Easy to process into custom filter elements
- OEM & ODM manufacturing support
- Environmentally friendly materials
Fast Sampling Support
Samples ready within 3–7 days for custom OEM & ODM orders. Flexible customization solutions are available to match your unique product requirements.
Advanced Production Equipment & Stable Quality
Equipped with professional automated production lines and sophisticated testing machinery, enabling consistent, reliable product quality across all batches.
Mass Production & On-Time Shipment
Efficient full-scale manufacturing capacity ensures finished goods can be delivered within 15–20 working days, guaranteeing punctual shipment schedules.
ISO Standard Strict Quality Control
All production follows strict ISO 9001 standards. Each shipment carries a complete quality inspection certificate to satisfy factory release specifications.
Description

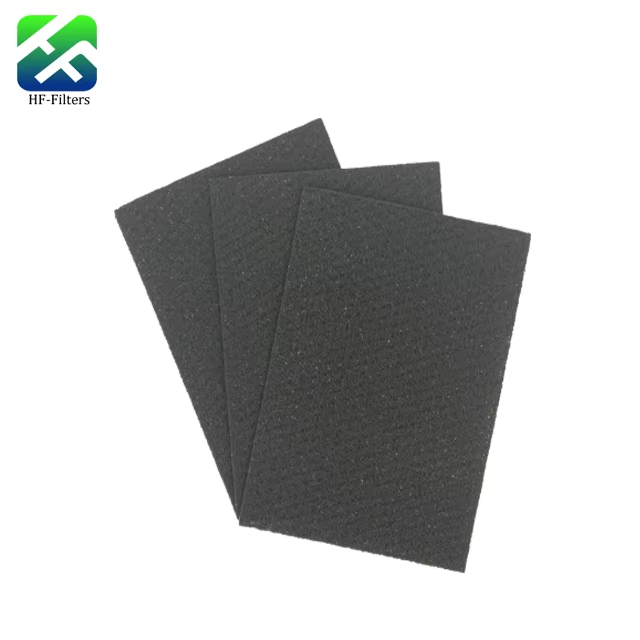

The Activated Carbon Filter Media combines activated carbon powder with durable non-woven fabrics to create an efficient filtration material for both particulate support and gas adsorption. It effectively removes formaldehyde, benzene, toluene, smoke, cooking odors and other volatile organic compounds while maintaining stable airflow.
Suitable for conversion into air purifier filters, HVAC filters, ventilation panels and industrial odor control systems, this media can be customized in thickness, carbon loading, dimensions and roll length to meet different application requirements.
Technical Parameters
| Adsorption objects: | ≥ all kinds of organic gases |
| Final pressure drop: | 200pa |
| Humidity resistance: | ≤100%RH |
| Resistance to temperature: | ≤80℃ |
| Instantaneous temperature resistance | ≤120℃ |
| Filtration efficiency: | >99.5% |
| Regular length of a roll: | 300 meters |
| Basis Weight (g/m2): | 440±44 |
| Thickness: | 1.45±0.2mm |
| Packaging Details: | Packed in rolls with PE bags |
Standard Model Options
| Item | Specification |
|---|---|
| Product Name | Activated Carbon Filter Media |
| Filter Type | Activated Carbon Non-Woven Filter Media |
| Carbon Material | Coconut Shell Activated Carbon |
| Base Material | Non-Woven Fabric |
| Available Forms | Roll, Sheet, Pad, Panel |
| Thickness | 1.45 ± 0.2 mm (Customizable) |
| Filtration Efficiency | ＞99.5% |
| Packaging | PE Bag / Roll Packaging |
| OEM Service | Available |
| ODM Service | Available |
Applications
| Air Purifier Manufacturing | HVAC & Ventilation Systems | Industrial Gas Filtration | Consumer & Household Products |
|---|---|---|---|
| Used as filter media for residential and commercial air purifier filters, helping remove odors, smoke and harmful gases while improving indoor air quality. | Integrated into HVAC systems, fresh air units and ventilation equipment for odor control and VOC adsorption in commercial and industrial buildings. | Suitable for spray booths, printing facilities, chemical processing, waste treatment and other industrial applications requiring gas-phase filtration and odor reduction. | Widely used in face masks, shoe materials, storage boxes, automotive cabin filters and household appliances requiring activated carbon filtration media. |
Customization & Quality Control
| Customization Services | Quality Assurance |
|---|---|
| • Custom roll width, sheet size and panel dimensions • Customized thickness and basis weight • Adjustable activated carbon loading • Coconut shell, coal-based or blended carbon options • Various non-woven substrate materials • Die-cutting, lamination and panel fabrication • OEM logo and private label packaging • Sample development based on drawings or specifications • Flexible OEM & ODM manufacturing |
• Incoming raw material inspection • Activated carbon adsorption capacity testing • Carbon distribution uniformity inspection • Thickness and basis weight verification • Air permeability and pressure drop testing • Tensile strength and bonding inspection • Dimensional accuracy inspection • Appearance and packaging verification • Batch traceability and production records • Final quality inspection before shipment |
