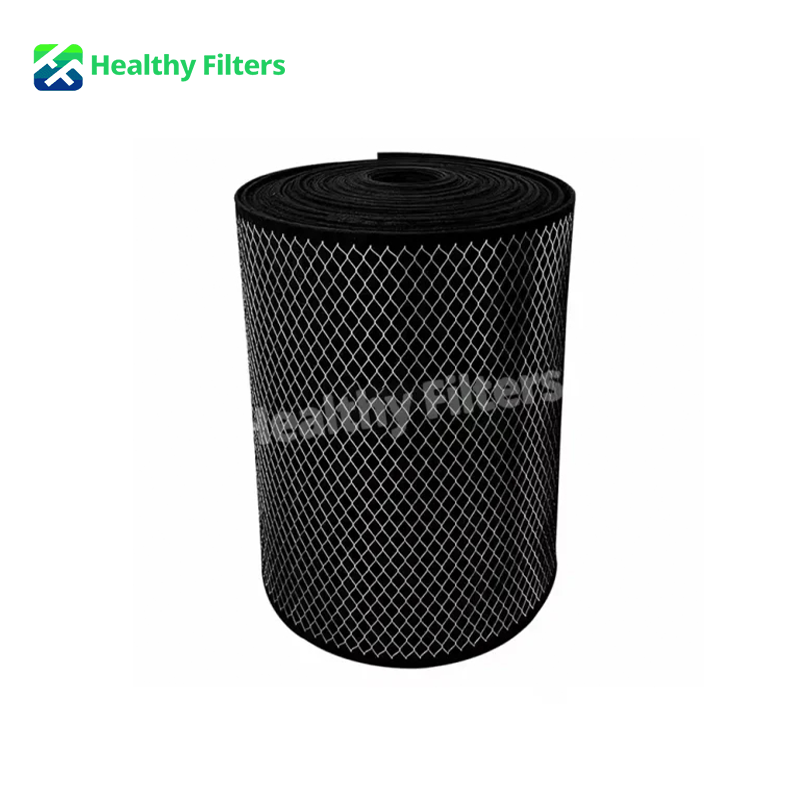

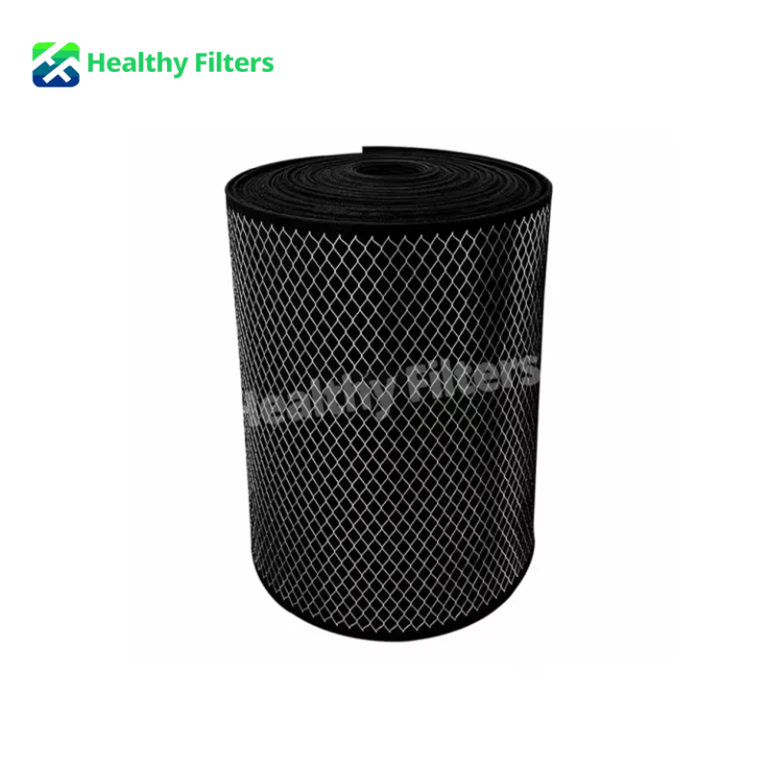

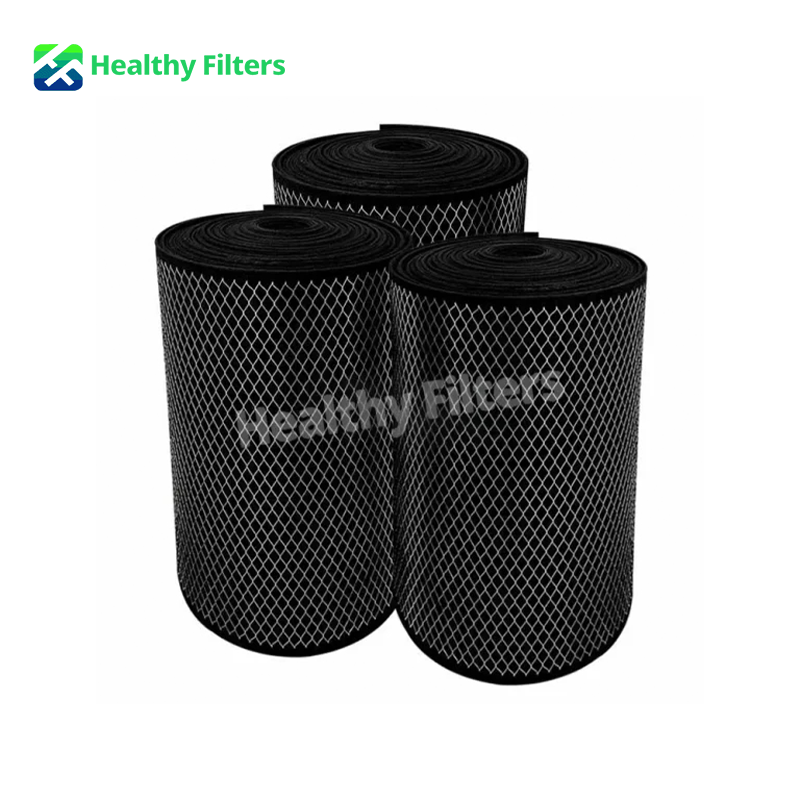

Activated Carbon Metal Mesh Laminated Synthetic Fiber Material Wire Air Pre Filter Media Roll
Activated Carbon Metal Mesh Laminated Synthetic Fiber Material Wire Air Pre Filter Media Roll
Features
- Activated carbon synthetic fiber filter media
- Laminated support mesh for improved rigidity
- G3 / G4 pre-filtration grades according to EN779
- Average arrestance up to 92% at 5 μm
- Low initial resistance of approximately 45 Pa
- High dust-holding capacity
- Helps reduce odors and selected gaseous contaminants
- Made from durable polyester synthetic fibers
- Resistant to breakage and deformation

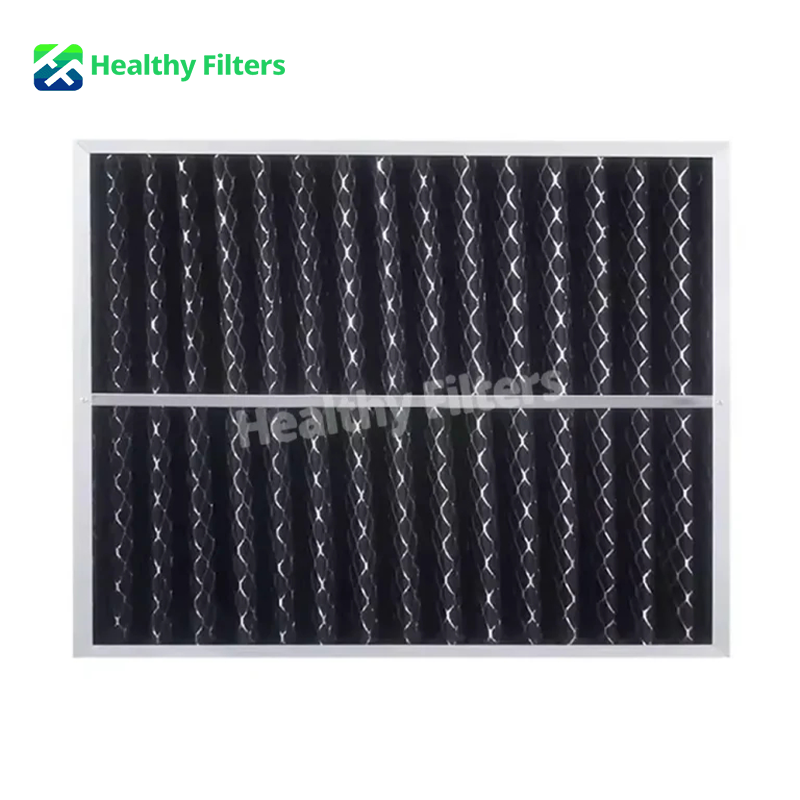

- Suitable for bag, panel, pleated, fold-type, and winding filters
- Maximum operating temperature up to 60°C
- Humidity resistance up to 90% RH
- DIN 53438 F1 flammability classification
- UL 900 Class 2 option
- Custom roll size, color, weight, and efficiency available
Fast Sampling Support
Samples ready within 3–7 days for custom OEM & ODM orders. Flexible customization solutions are available to match your unique product requirements.
Advanced Production Equipment & Stable Quality
Equipped with professional automated production lines and sophisticated testing machinery, enabling consistent, reliable product quality across all batches.
Mass Production & On-Time Shipment
Efficient full-scale manufacturing capacity ensures finished goods can be delivered within 15–20 working days, guaranteeing punctual shipment schedules.
ISO Standard Strict Quality Control
All production follows strict ISO 9001 standards. Each shipment carries a complete quality inspection certificate to satisfy factory release specifications.
Description
Mesh Synthetic Filter Cotton RoIlt, through a gradual encryption manufacturing process, this media achieves low initial resistance and high dust holding capacity. It can be used to produce pleated filters after laminating with wire mesh. It features excellent flame resistance, meeting European DIN53438-F1 standards, and is highly moisture-resistant, capable of withstanding up to 100% humidity.

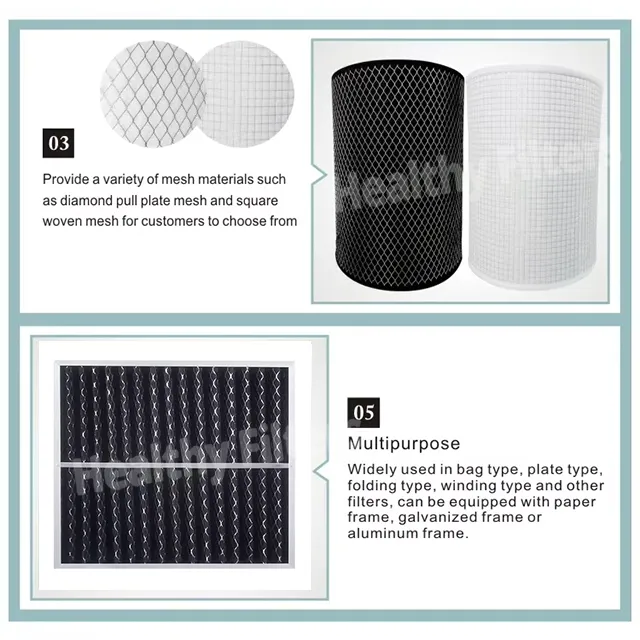

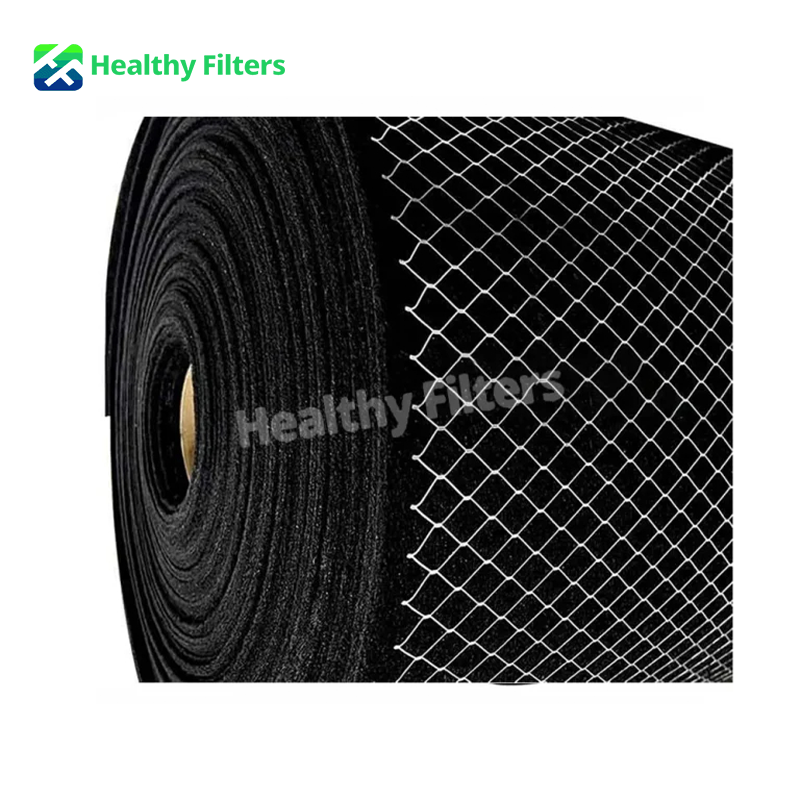

Healthy Filters mesh filter material is a layer of metal mesh or rigid plastic mesh bonded on the air outlet surface of the coarse and medium efficiency filter material, which increases the stiffness and hardness of the material. It is easy to shape after folding and does not deform when used under high air flow.
Media: 100% Polyester fibre
● Efficiency: G3 G4 as per EN779
● Average Arrestance: 92% @5μm
● Initial resistance: 45 Pa
● Recommended final pressure drop: 250Pa
● Humidity resistance: 90%RH
● Max Temperature: 60 ℃
● DIN 53438 Flammability: F1
● UL 900 Standard: Class 2
● Air flow rate: 2.5m/s
Technical Parameters
| Part Name | Supply Laminated Mesh Air Filter Media |
| size | customized |
| Colour | Black ,White (Customized) |
| Weight | 110g |
| Efficiency | (Customized) |

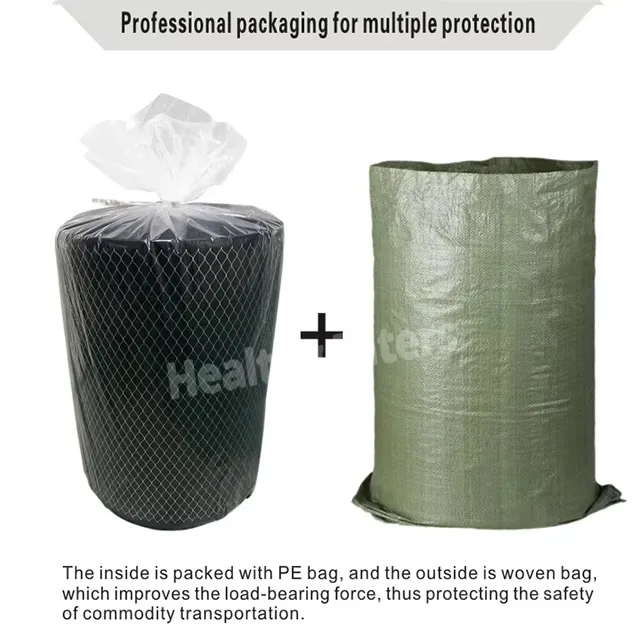

| Package | PP+PET |
Standard Model Options
| Parameter | Specification |
|---|---|
| Product Type | Laminated Mesh Activated Carbon Filter Media |
| Media Material | 100% Polyester Fiber |
| Filtration Grade | G3 / G4 |
| Average Arrestance | 92% @ 5 μm |
| Initial Pressure Drop | 45 Pa |
| Recommended Final Pressure Drop | 250 Pa |
| Rated Air Velocity | 2.5 m/s |
| Maximum Operating Temperature | 60°C |
| Maximum Relative Humidity | 90% RH |
| Flammability Grade | DIN 53438 F1 |
| UL Classification | UL 900 Class 2 |
| Reference Media Weight | 110 g/m² |
| Color | Black / White / Customized |
| Size | Customized |
| Packaging | PP + PET or Customized Export Packaging |
Applications
| HVAC Pre-Filter Manufacturing | Central Air-Conditioning Systems | Compressor & Equipment Intake | Return-Air & Odor Control |
|---|---|---|---|
| Raw material for producing panel, pleated, pocket, fold-type, and winding pre-filters. | Coarse dust filtration and odor reduction in AHUs, commercial ventilation, and central HVAC systems. | Pre-filtration for large air compressors, machinery intake systems, and ventilation equipment. | Used in clean return-air systems, air purifiers, offices, hotels, public buildings, and indoor spaces with odor concerns. |
Customization & Quality Control
| Customization Available | Quality Inspection |
|---|---|
| • Custom roll width and length • G3 / G4 or project-specific efficiency • Activated carbon loading customization • Polyester media density and weight options • Metal or polymer support mesh options • Black, white, or custom media colors • Custom airflow and resistance requirements • OEM roll labels, private branding, and packaging |
• Polyester fiber and activated carbon verification • Roll width, length, and media-weight inspection • Mesh lamination and bonding check • Surface uniformity and structural inspection • Airflow and initial-resistance testing • Filtration and arrestance testing upon request • Odor adsorption performance testing upon request • Roll winding and packaging inspection before shipment |

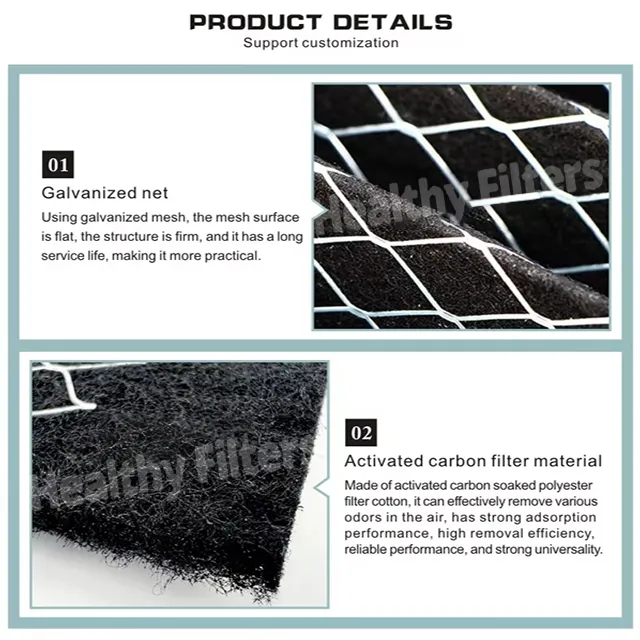

PRODUCT DETAILS
 |
 |
 |
