AI racks release more heat, so your cooling system must move air continuously. That makes low-resistance air filters for data centers relevant to data center PUE optimization.
A poor match can raise fan load, restrict airflow, and let dust foul coils. In a compact AI facility, even a dirty intake can become everyone’s Monday-morning problem.
Why Does Filter Resistance Matter to PUE?
PUE compares total facility power with IT equipment power. Cooling fans sit on the facility side, so needless static pressure can hurt the result. A filter cannot control PUE alone, yet it can support AI data center cooling efficiency by keeping the air path cleaner and easier to move.
Initial Pressure Drop Is Only the Starting Point
Low pressure drop air filters should be judged at actual rated airflow, not by a brochure number tested under easier conditions. You also need the loading curve. A high dust holding capacity filter may run longer before reaching the change-out limit.
Product data shows why context matters. Primary filter media options list initial resistance from 15 to 25 Pa at 1.5 m/s, with dust-holding capacity from 400 to 630 g/m². Panel, washable, nylon, and metal mesh designs cover different airflow, strength, and cleaning needs.
How Air Filter Pressure Drop Affects Data Center PUE?
Higher resistance makes the fan work harder or reduces airflow. Lower airflow weakens heat transfer. Dust then builds on EC fans, coils, and heat exchangers, adding more resistance. This is how air filter pressure drop affects data center PUE over months, not just on installation day.
Watch the Whole Cooling Path
Your data center HVAC filters should protect equipment without over-filtering the first stage. A suitable data center pre-filter catches coarse dust and fibers before they reach sensitive parts. Check the frame seal too. Air bypass around a good filter is still unfiltered air.
Which Filter Designs Fit AI Cooling Systems?
No single design fits every intake. Available depth, face velocity, outdoor dust, humidity, salt, and service access all change the answer. A container site beside a dry road faces a different problem from a sealed urban room.
Common Low-Resistance Options

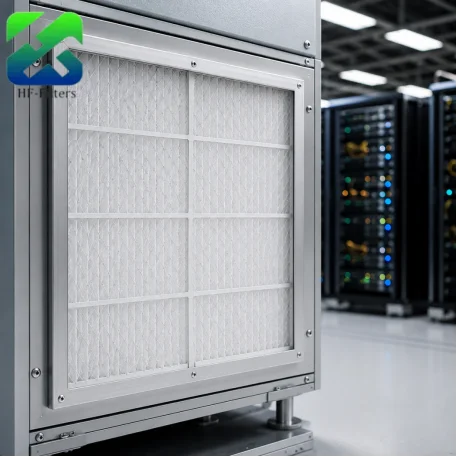

A pleated panel filter for data centers adds media area in a compact frame. A metal mesh filter for data centers suits coarse capture, high airflow, and repeated washing. A washable pre-filter for data centers can cut disposable waste when your team has a proper cleaning and drying process. A custom air intake filter for data centers can match the slot, gasket, frame, and target pressure drop.
A modular data center air filter also needs quick access. A container data center air intake filter may need stronger weather resistance and staged filtration.
How to Select Air Filters for AI Data Centers?
Start with airflow, face area, permitted initial pressure drop, final pressure drop, particle load, and maintenance interval. Compare data center air filters at the same face velocity. Then review fan reserve, filter depth, sealing, fire requirements, and whether washing is practical.
Put Lifecycle Cost Before Unit Price
The cheapest filter may need more fan power or more labor. Track average pressure drop, change frequency, coil cleaning, and fan energy. That gives you a fairer view of the best air filter for modular data centers than purchase price alone.
We Build Filters to Your Exact Data Center Spec
At Healthy Filters, we manufacture panel filters, metal mesh units, washable pre-filters, filter media rolls, and HEPA/ULPA filters — all available with custom dimensions, frame materials, and gasket configurations.
If you share your airflow rate, face dimensions, and target pressure drop, our engineering team will recommend a matched filter package and provide samples before bulk production. We ship to data center contractors and facility managers worldwide.
FAQ
Q1: Can low-resistance air filters for data centers reduce PUE?
A: They can reduce needless resistance and help coils stay clean, but they do not determine PUE alone.
Q2: How often should data center air filters be replaced?
A: Use measured pressure drop, dust loading, operating hours, and equipment limits, not a fixed calendar only.
Q3: What is the best air filter for modular data centers?
A: The best choice matches airflow, space, environment, sealing, and service access.
Q4: Are washable filters always cheaper?
A: Not always. Cleaning labor, drying time, damage, and lost efficiency can change lifecycle cost.
Q5: Can Healthy Filters supply custom sizes and provide samples before bulk orders?
A: Yes. Share your frame dimensions, airflow, target efficiency grade, and pressure-drop limit — we’ll match the spec and ship samples within 7 working days.
