In the global chip race, Semiconductor Air Filtration is no longer a background utility. Your Semiconductor Cleanroom needs stable clean air, not a good particle reading at one moment. A Cleanroom Air Filter, ULPA Filter, FFU System, pressure controls, and maintenance data must work together. Advanced nodes, EUV, packaging, and AMC control now place tighter demands on contamination management.
How Cleanroom Air Filtration Protects Semiconductor Yield
Semiconductor manufacturing depends on more than a cleanroom classification or a high-efficiency filter label. Stable airflow, controlled pressure, reliable FFU operation and verified filter integrity all influence how effectively a cleanroom protects wafers and sensitive processes.
As advanced nodes, EUV lithography and advanced packaging increase contamination sensitivity, semiconductor cleanroom air filtration is becoming part of yield protection—not simply a facility utility.
A reliable system must consider the complete contamination-control chain:
HEPA or ULPA filter class
FFU airflow and ceiling balance
Initial and final pressure drop
Filter-to-housing sealing
Factory and installed leak testing
Particle and AMC control
Maintenance and replacement data
Selecting the highest filter grade alone is not enough. The filter must match the process risk, FFU design, airflow requirement and project specification.
Stable Clean Air Protects the Process
A Semiconductor Cleanroom may pass certification yet still have a weak ceiling zone near a tool. That can lead to wafer contamination, lithography defects, extra cleaning, or downtime. A particle counter at 9 a.m. does not tell the whole story at 3 p.m.
System Stability Matters More Than One Label
Track local velocity, room pressure, FFU output, and particle trends. Predictive maintenance can flag rising resistance or motor-current changes before the problem reaches production. Smart monitoring and lower-energy filtration are becoming important directions in semiconductor facilities.
Why Is a ULPA Filter More Than an Efficiency Rating?
A ULPA Filter is often selected for highly sensitive process zones, but the grade alone cannot protect yield. You also need low pressure drop, stable media, a rigid frame, a sound seal, and a test record tied to the unit.
Match the Filter to the Application
A ULPA Filter for Semiconductor Manufacturing should match the FFU housing, airflow target, ceiling grid, and service plan. Healthy Filters lists gel-seal H14 and U15 units with aluminum frames and polyurethane sealing. Available examples range from 300 to 3,000 m³/h, with listed velocities from 0.75 to 1.12 m/s.
Review Resistance and Service Life
Do not compare a Cleanroom Air Filter by efficiency alone. Media area, initial resistance, final resistance, and airflow all affect fan duty. Healthy Filters also describes mini-pleated filters for particles at or below 0.3 µm, with high efficiency, low weight, and long service life.
Why Is the FFU System Critical to Cleanroom Stability?

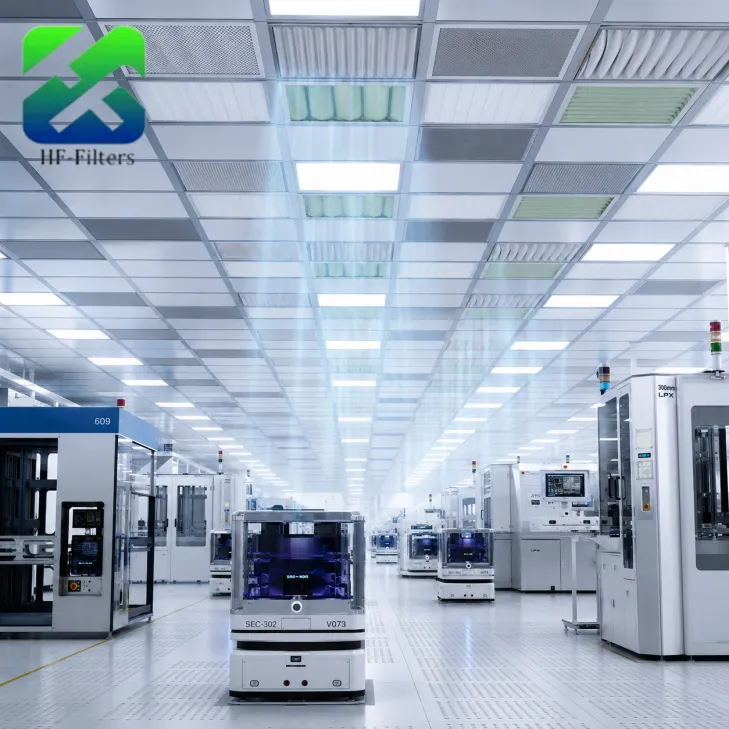

The FFU System controls the air delivered through each ceiling module. In a large fab, hundreds or thousands of units may run together, so one weak unit can create a local imbalance even when the room average looks fine.
Balance the Ceiling, Not Only the Average
A reliable FFU System for Cleanroom use should provide steady airflow, low vibration, low noise, and practical access. An ISO Class 1 Cleanroom or ISO Class 3 Cleanroom still needs point-by-point airflow checks. Classification does not fix a poorly balanced ceiling.
Link Airflow to Pressure and Energy
Semiconductor Cleanroom Airflow Design must cover FFU output, tool heat, process exhaust, return paths, and pressure stability. Cleanroom HVAC should also trend differential pressure and fan demand. Higher filter resistance may not stop airflow immediately, but it can quietly raise energy use.
Why Is a Cleanroom Filter Leak Test Essential?
Factory efficiency measures overall penetration. A Cleanroom Filter Leak Test looks for local media defects, damaged seals, and bypass leakage. Both checks matter because air that slips around the media is not filtered air.
Specify Traceable Integrity Testing
For critical zones, request a 100% Leak Tested ULPA Filter with individual documentation when the order requires it. The supplier states that certain cleanroom filters receive individual PAO testing to EN 1822 with serialized scan records. Confirm the exact test scope in the purchase specification. Installed testing is still needed after the filter enters the FFU or ceiling grid.
This is where Semiconductor Air Filtration becomes a competitive advantage: fewer hidden defects, steadier operation, and less emergency work above active production areas.
What Can Healthy Filters Add to a Semiconductor Project?
Healthy Filters supplies prefilters, HEPA and ULPA products, gel-seal designs, filter media, and custom filtration solutions. Its website records ISO 9001 certification, a 30 m³ CADR test center, standardized cleanroom facilities, and OEM support. The official site also lists automated equipment, custom sizing, and semiconductor FFU products.
FAQ
Q1: What Most Affects Chip Yield?
A: Stable airflow, pressure, particle control, filter integrity, and reliable FFU operation.
Q2: Does Every Fab Need U15?
A: No. Select the grade by process risk, airflow, and project requirements.
Q3: Why Use a Gel Seal?
A: It helps limit bypass leakage at the filter-to-housing connection.
Q4: When Should Filters Be Replaced?
A: Use pressure, airflow, integrity results, and trend data, not age alone.
Q5: Can ULPA Remove AMC?
A: No. AMC filtration needs media selected for the target gas or chemical.
Need H14 or U15 filters matched to an existing FFU?
Share the FFU drawing or ceiling module dimensions. Our team can review airflow, resistance, frame and seal compatibility.
