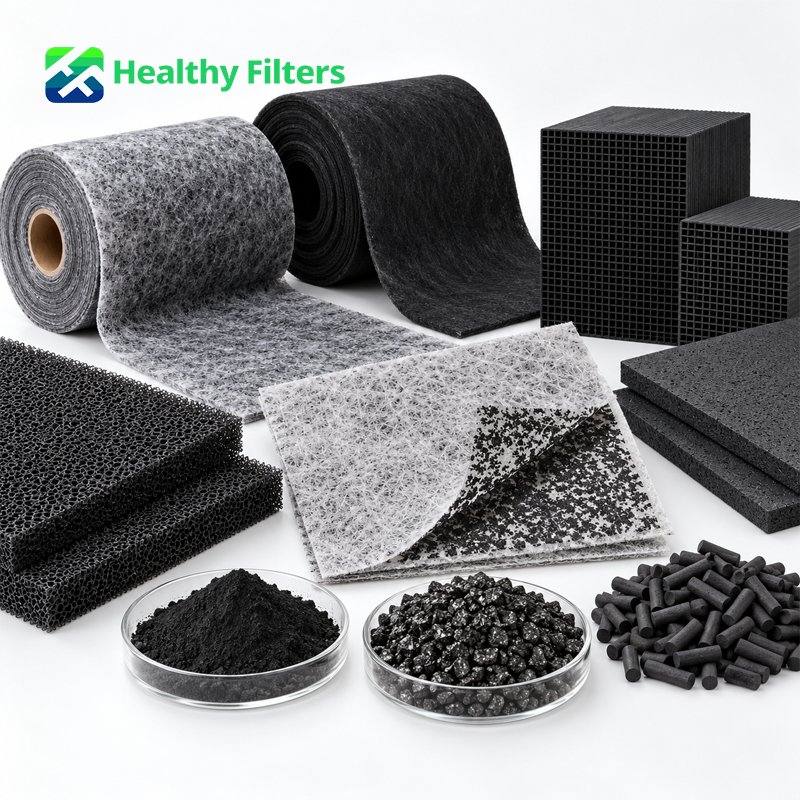

activated carbon air filter media

PRODUCT DETAILS

Activated Carbon Filter Foam：

Open-cell polyurethane foam loaded with activated carbon, suitable for sheets, pads and custom-cut air filter components.

Parameter TA110 TA130 Basis Weight 260 g/m² 400 g/m² Thickness 5 mm 5 mm Carbon Loading 170 g/m² 316 g/m² Carbon Fraction 61% 78% Initial Pressure Drop 4.9 Pa 7.8 Pa Test Face Velocity 1.0 m/s 1.0 m/s Sheet Size 500 × 1000 mm 500 × 1000 mm

Equipment Position & Function Home Air Purifier Odor adsorption layer near the particulate filter Range Hood Odor-control layer downstream of grease filtration Fresh Air Unit Thin carbon pad in the air inlet Refrigerator Deodorizer Die-cut foam pad in the recirculation path

Activated Carbon Nonwoven Fabric：

Nonwoven substrate loaded with activated carbon for gas adsorption, lamination and converting.

Equipment Position & Function Air Purifier Standalone adsorption layer or carbon layer adjacent to HEPA AC Filter Odor-control sheet in return-air filtration HVAC Panel Filter Carbon media in a framed filter Waste-bin Deodorizer Small exhaust or recirculation channel

Parameter 5 mm 10 mm Substrate Polyester Polyester Thickness 5 mm 10 mm Total Basis Weight 300 g/m² 300 g/m² Carbon Loading 150 g/m² 135 g/m² Published Deodorizing Capacity 55 g/m² 62 g/m² Roll Size 1.2 × 30 m 1.2 × 30 m

Granular Activated Carbon Sandwich Media：

Granular carbon particles secured between nonwoven layers for odor-control filters and pleated media applications.

Parameter Published Value Construction Three-layer Composite Basis Weight 520 ± 52 g/m² Thickness 1.75 ± 0.25 mm Air Permeability ＞1000 L/m²/s Particulate Filtration Efficiency ＞65% Pressure Drop ＜10 Pa Carbon Loading Customizable

Equipment Position & Function Cabin Air Filter Pleated with particulate filter layers Air Purifier Carbon-loaded adsorption media Fresh Air Unit Inlet odor and selected VOC adsorption Commercial HVAC Panel or pleated gas-phase media

Activated Carbon Fiber Felt：

Flexible activated carbon fiber media designed for gas adsorption, solvent recovery and custom industrial filtration.

Equipment Position & Function Solvent Recovery System Adsorption chamber or module Industrial VOC Filter Layered fiber adsorption medium Laboratory Exhaust Purification Custom organic-vapor adsorption element Specialized Air Purifier Thin gas adsorption layer

Parameter ACFF-900 ACFF-1200 ACFF-1500 BET Surface Area ≥900 m²/g ≥1200 m²/g ≥1500 m²/g Thickness 1 mm 2–2.5 mm 3–4 mm Basis Weight 60 ± 10 g/m² 150 ± 20 g/m² 250 ± 20 g/m²

Extruded Activated Carbon Pellets：

Cylindrical activated carbon pellets for vapor treatment, odor control and packed-bed gas filtration.

Parameter AP 4-60 Pellet Diameter 4 mm Raw Material Bituminous Coal Activation High-temperature Steam Activation Application Air & Gas Purification Shape Extruded Cylindrical Pellets

Equipment Position & Function VOC Adsorption Tower Packed adsorbent bed Printing Exhaust Treatment Solvent vapor adsorption Commercial HVAC Gas-phase filter cartridge Industrial Odor Control Unit Dedicated adsorption module

Honeycomb Activated Carbon：

Honeycomb activated carbon monolith for industrial VOC adsorption, odor control and modular gas filtration.

Equipment Position & Function Industrial VOC Treatment Honeycomb adsorption chamber Paint Booth Exhaust Engineered adsorption stage Printing Exhaust Organic vapor adsorption module HVAC Gas Filtration Honeycomb gas filter unit

Parameter Published Value Dimensions 100 × 100 × 100 mm CTC Activity 15–50% Iodine Number 400–900 mg/g BET Surface Area 400–1000 m²/g Compressive Strength 0.9 MPa Moisture 0–20% Wall Thickness 1.0 mm

Pleated Activated Carbon Filter Media：

Pleatable carbon adsorption media for compact and high-area gas-phase filtration elements.

Parameter Published Value Nominal Airflow 3400 m³/h Initial Pressure Drop 70 Pa Carbon Weight 3.7 kg Total Weight 8.0 kg Gas-phase Classification ISO 10121

Equipment Position & Function Commercial AHU Pleated gas-phase filter Fresh Air Units Pleated odor-control panel Large Air Purifier Extended-surface adsorption element Cabin Air Filter Compact pleated adsorbent media

Activated Carbon Filter Board：

Application Material Use Air Purifiers Used as a rigid carbon adsorption panel installed after the particulate filter for odor and selected gas adsorption HVAC Ventilation Systems Installed inside framed panel filters as a gas-phase filtration board Commercial Air Cleaners Used as a replaceable activated carbon filter board module Kitchen Exhaust Odor Control Used for odor control after grease pre-filtration Appliance Deodorizing Modules Die-cut into rigid deodorizing inserts for refrigerators, shoe cabinets, pet odor devices, etc. Industrial Equipment Exhaust Used in validated low-concentration gas adsorption modules

Parameter Published Value Product Name Activated Carbon Filter Board Construction Bonded Activated Carbon Board / Carbon-loaded Composite Board Activated Carbon Type Coconut Shell / Coal-based / Customized Thickness 3–30 mm Dimensions Customized, e.g. 100×100 mm / 300×300 mm / 500×500 mm Carbon Content 40–90 wt% Bulk Density Grade-specific Compressive Strength To be tested according to board construction Flexural Strength To be tested according to board construction Initial Pressure Drop Tested at specified face velocity Gas Adsorption Capacity Tested with target gases Carbon Shedding Tested by internal method or agreed standard Flame Resistance Available upon request Supply Form Sheets / Cut Panels / Framed Boards

HEPA Carbon Composite Filter Media：

Parameter CF250-P95 CF350-P95 CF450-P95 Product Name HEPA Carbon Composite Filter Media HEPA Carbon Composite Filter Media HEPA Carbon Composite Filter Media Basis Weight 250 g/m² 350 g/m² 450 g/m² Carbon Loading 120 g/m² 203 g/m² 306 g/m² Thickness 1.1 ± 0.2 mm 1.2 ± 0.2 mm 1.4 ± 0.2 mm Initial Pressure Drop ≤19 Pa ≤21 Pa ≤23 Pa Initial Particle Efficiency ≥95% ≥95% ≥95% Maximum Roll Width 1440 mm 1440 mm 1440 mm Roll Length 200 m 200 m 200 m

Application Material Use Home Air Purifiers Used as a composite media combining particle filtration and activated carbon adsorption Commercial Air Cleaners Used in multilayer composite filters for offices, hotels, schools, etc. Cylindrical Air Purifier Filters Pleated and rolled into cylindrical filter cartridges Automotive Cabin Air Filters Used in cabin air filters for both particulate filtration and odor control Fresh Air Purification Systems Used as a combined layer for high-efficiency particulate filtration and gas adsorption Custom OEM Filter Elements Suitable for lamination, pleating, die cutting and customized sizes
