Descripción
Healthy Filters supplies reinforced MERV 8–14 filter media rolls and manufactures finished pleated air filters for HVAC applications.
Our products include pleated filter media packs, cardboard frame filters, metal frame panel filters and custom HVAC replacement filters.
We support bulk media supply and OEM finished filter production, with customized filtration grades, dimensions and specifications.
Available Products:
| Filtration Level | US Standard | European Standard |
|---|---|---|
| Coarse | MERV 5–6 | G3 |
| Coarse | MERV 7–8 | G4 |
| Medio | MERV 8–10 | M5 |
| Medio | MERV 11–12 | M6 |
| Higher Efficiency | MERV 13 | F7 |
| Higher Efficiency | MERV 14 | F8 |
| Higher Efficiency | MERV 15 | F9 |
| Modelo | Grado de filtro | Eficiencia del filtro | Resistencia (Pa) | Espesor | Peso del material filtrante (g/㎡) |
| HF-M8 | MERV 8 | 40-45% | 4 | 1.5mm | 110 g/m² |
| HF-M11 | MERV 11 | 60-65% | 4 | 2 mm | 95 g/m² |
| HF-M13 | MERV 13 | 85-90% | 5 | 2 mm | 95 g/m² |
| HF-M14 | MERV 14 | 90-95% | 6 | 2.5mm | 135 g/m² |
| Artículo | Especificación |
|---|---|

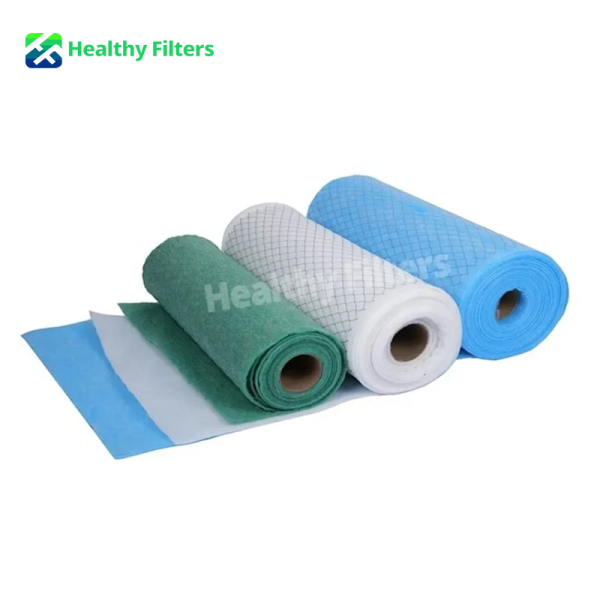

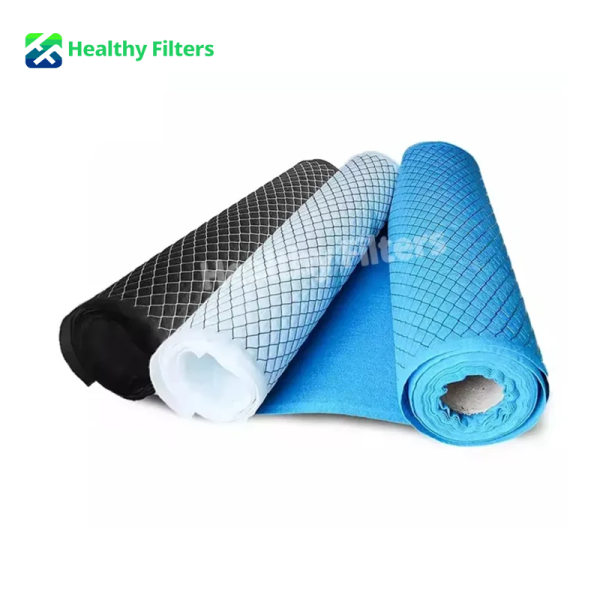

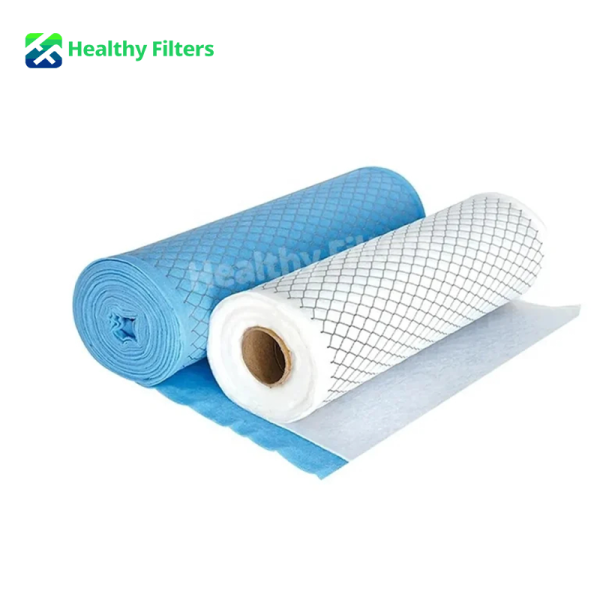

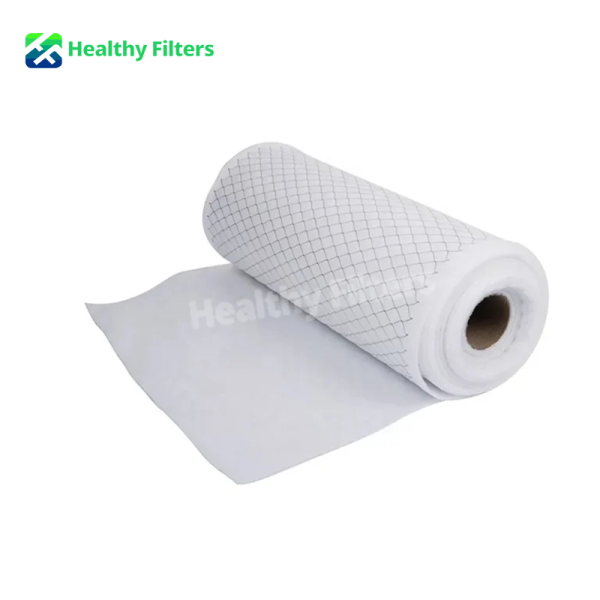

| Nombre del producto | Rollo de material filtrante de aire sintético de malla laminada |
| Tipo de producto | Medio filtrante sintético reforzado |
| Serie de modelos | HF-M |
| Grados de filtro | MERV 8 / MERV 11 / MERV 13 / MERV 14 |
| Material filtrante | Fibra sintética de PET |
| Reforzamiento | Malla de soporte laminada |
| Estructura | Estructura de fibra tridimensional no tejida |
| Formulario de suministro | Material en rollo |
| Espesor estándar | 1,5–2,5 mm |
| Peso medio | 95–135 g/m² |
| Resistencia | 4–6 Pa |
| Resistencia a la temperatura | Hasta 80 °C |
| Tratamiento | Plisado, corte, unión, unión térmica |
| Uso previsto | Filtros de panel, filtros plisados, fabricación de filtros para sistemas de climatización (HVAC). |
![]() |
![]() |
![]() |
| Pleated Panel Air Filters | Cardboard Frame Air Filters | Metal Frame Pleated Filters | HVAC & Industrial Air Filters |
|---|---|---|---|
| Reinforced filter media is suitable for manufacturing pleated panel air filters and pleated pre-filters for general air filtration. | Used to produce cardboard frame pleated filters for HVAC systems and commercial ventilation applications. | Ideal for manufacturing metal frame air filters with durable structures and customized dimensions. | Suitable for producing HVAC replacement filters, electrostatic air filters and industrial ventilation filters. |
| Personalización disponible | Inspección de calidad |
|---|---|
| • Ancho y largo del rollo personalizados
• MERV 8 / 11 / 13 / 14 Efficiency Options • Custom Thickness and Media Weight • PET Fiber Density Customization • Support Mesh Material and Pattern Options • Electrostatic Air Filter Media Customization • Electrostatic Performance Requirements • Custom Media Color • Resistance and Efficiency Requirements • OEM Roll Labels, Packaging and Private Branding |
• Raw Fiber and Mesh Material Verification
• Roll Width, Length and Thickness Inspection • Media Weight and Density Testing • Mesh Lamination and Bonding Inspection • Surface Uniformity and Fiber-Shedding Check • Prueba de resistencia al flujo de aire • Filtration Efficiency Testing Upon Request • Roll Winding and Packaging Inspection Before Shipment |
![]() |
![]() |
![]() |
