Papel de filtro de aire PP+PET
Papel de filtro de aire PP+PET
Características

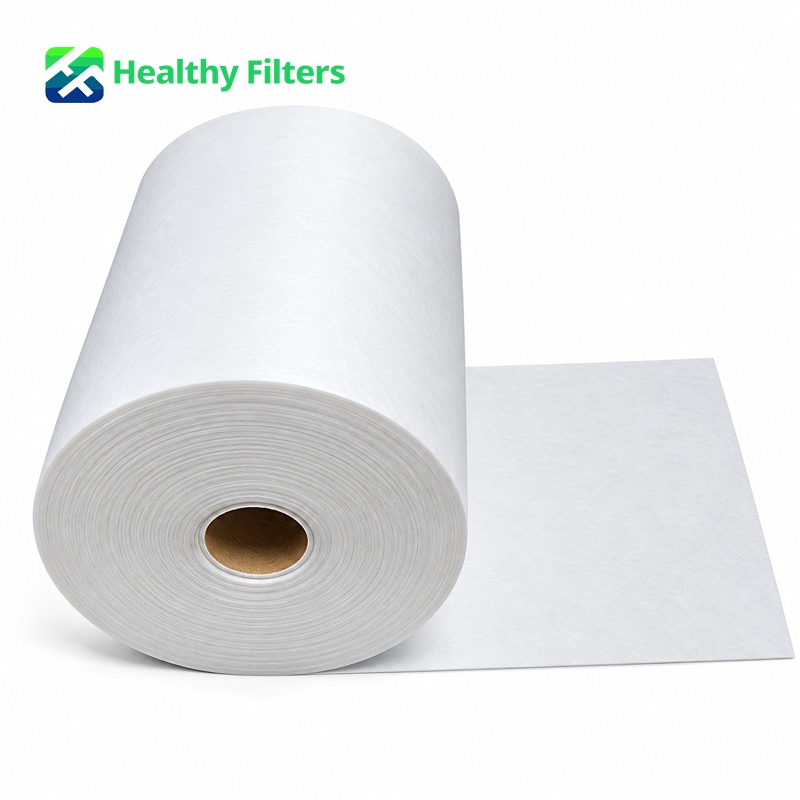

Our PP+PET Air Filter Paper is a synthetic composite filtration material designed for air purification and filter element manufacturing.
Combining polypropylene filtration fibers with polyester support materials, this type of media can be developed for high-efficiency air filtration, mini-pleat filters, fresh air systems and commercial air cleaning equipment.
Different filtration grades, basis weights, thicknesses and roll dimensions can be selected according to application requirements and verified technical performance.- Composite Structure: PP filtration fibers combined with PET supporting materials.
- High-efficiency Options: Different filtration grades may be available subject to testing.
- Filter Manufacturing: Suitable for validated pleating, cutting and lamination processes.
- Custom Specifications: Adjustable roll sizes and material constructions.
Custom options: basis weight, thickness, layer configuration, protective layers, roll dimensions, cutting sizes, pleatability and target filtration performance.
Soporte para muestreo rápido
Muestras listas en 3-7 días para pedidos OEM y ODM personalizados. Ofrecemos soluciones de personalización flexibles para adaptarnos a las necesidades específicas de su producto.
Equipos de producción avanzados y calidad estable
Equipadas con líneas de producción automatizadas profesionales y maquinaria de prueba sofisticada, lo que permite una calidad de producto constante y fiable en todos los lotes.
Producción en masa y envíos puntuales.
Una eficiente capacidad de fabricación a gran escala garantiza que los productos terminados se puedan entregar en un plazo de 15 a 20 días hábiles, lo que garantiza la puntualidad en los plazos de envío.
Control de calidad estricto según la norma ISO
Toda la producción cumple con las estrictas normas ISO 9001. Cada envío incluye un certificado de control de calidad completo que garantiza el cumplimiento de las especificaciones de fábrica.
- Composite Structure: Combines PP filtration fibers with PET support layers for reliable material construction.
- Efficient Particle Filtration: Available in different filtration grades to meet various air purification requirements.
- Flexible Processing: Suitable for cutting, lamination and filter element manufacturing.
- Wide Applications: Ideal for air purifiers, HVAC systems, ventilation filters and commercial air filtration equipment.
- Customizable Specifications: Thickness, basis weight, roll width and material structure can be adjusted according to customer requirements.
Our PP+PET air filter paper provides flexible solutions for OEM manufacturers developing high-performance air filtration products.
Presupuesto
| Parámetro | H10–H12 Reference | H13 Reference | H14 Reference |
|---|---|---|---|
| Material | PP+PET | PP+PET | PP+PET |
| Peso base | 85 ± 10 g/m² | 95 ± 10 g/m² | 105 ± 10 g/m² |
| Espesor | 0.55 ± 0.05 mm | 0.65 ± 0.05 mm | 0.75 ± 0.05 mm |
| Published Grade | H10–H12 | H13 | H14 |
| Roll Width | 1.48 m | 1.48 m | 1.48 m |
| Longitud del rollo | 500 m | 500 m | 500 m |
| Color | Blanco | Blanco | Blanco |
| Supply | Rollo | Rollo | Rollo |
Specific Applications
| Solicitud | Finished Products |
|---|---|
| Home Air Purifiers | Flat and pleated purifier filter elements |
| Commercial Air Filtration | Composite filtration modules |
| Fresh Air & HVAC | Mini-pleat and panel filters |
| Clean-air Equipment | High-efficiency filter elements, subject to grade verification |
OEM & Customization Options
We offer flexible material customization options for different air filtration applications, including:
- Material composition and layer structure
- Filtration efficiency and pressure drop targets
- Basis weight, thickness and air permeability
- Roll width, length and custom-cut dimensions
- Slitting, lamination and filter converting options
Technical Specifications Notice
All specifications shown are general reference values based on selected published material grades. Actual product performance and availability depend on the material construction, test conditions and manufacturing feasibility.
Contact us for customized specifications, technical consultation, product samples and OEM inquiries.
