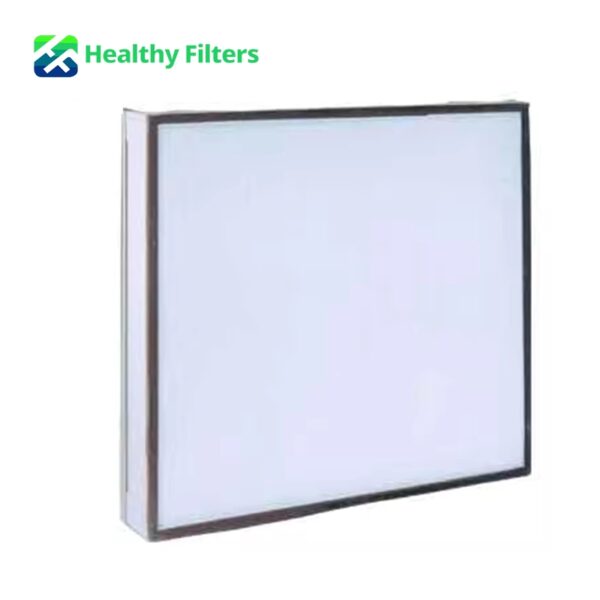

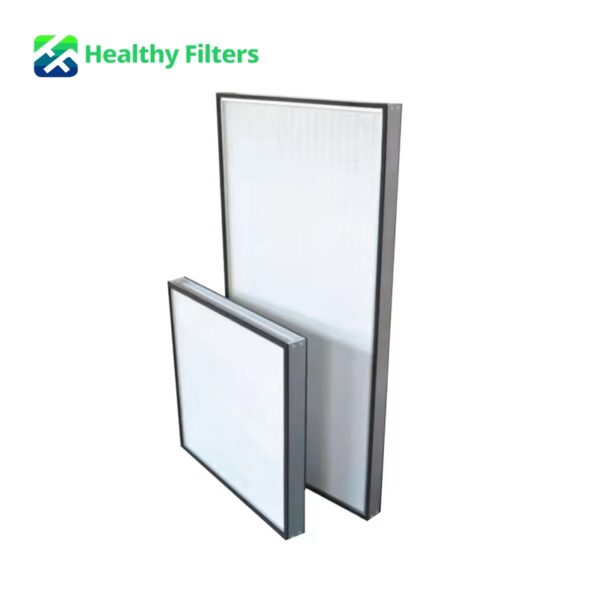

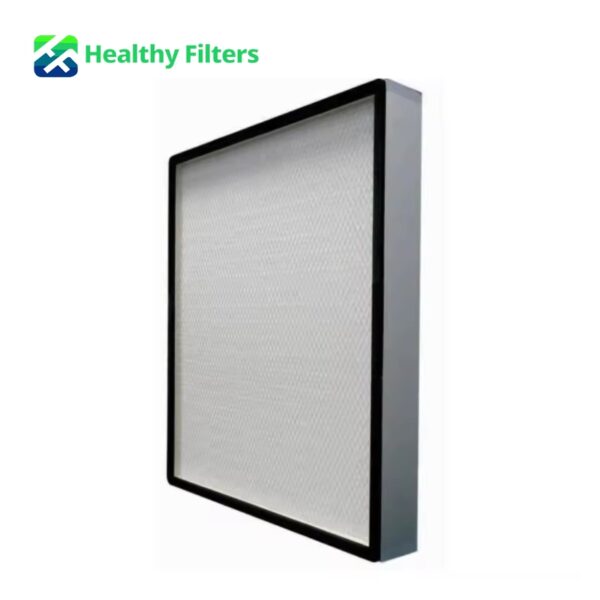

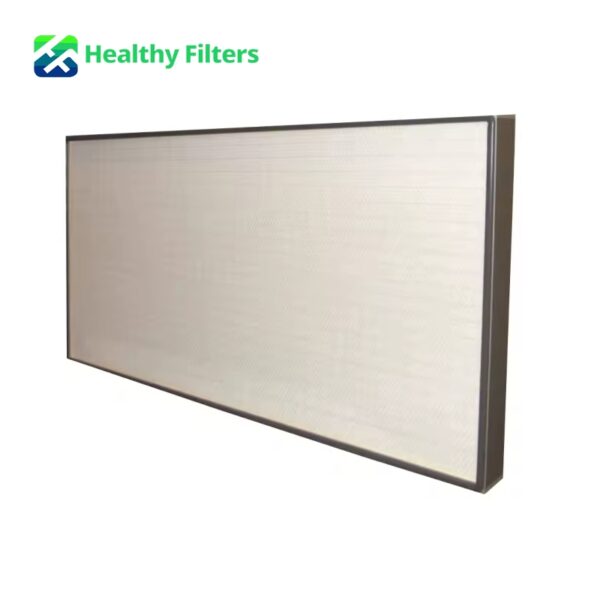

Mini-pleat HEPA filter for cleanroom and HVAC terminal filtration.






The HF-WGB mini-pleat HEPA filter is designed for final-stage particle filtration in cleanrooms, controlled production areas and HVAC terminal systems. Its compact pleat pack uses superfine fiberglass paper or PP high-efficiency filter media separated by hot-melt adhesive. This construction provides a large media area without the bulky aluminum or paper separators used in conventional deep-pleat filters.
Use the filter where the selected efficiency grade, airflow and pressure-drop limit have been confirmed for the installation. Healthy Filters can review the frame material, filter depth, gasket, protective mesh, media grade and packaging against your drawing or operating data. Because resistance changes with size, media and test airflow, the final performance specification should be agreed for the selected model rather than copied from another size.
The following HF-WGB data comes from the current company technical records. Values apply to the listed reference configuration. Confirm the selected media grade, test airflow and acceptance method before ordering.
| Modelo | Tamaño (mm) | Caudal de aire nominal (m³/h) | Área del filtro (m²) | Dust Holding Capacity (g/m²) | Caída de presión inicial | Caída de presión final recomendada | Reference Arrestance |
|---|---|---|---|---|---|---|---|
| HF-WGB | 484 × 484 × 50 | 500 | 4.6 | 300 | <220 Pa | 400 Pa | >99,99% |
| HF-WGB | 610 × 610 × 50 | 800 | 7.5 | 450 | <220 Pa | 400 Pa | >99,99% |
| HF-WGB | 305 × 305 × 69 | 260 | 2.5 | 150 | <220 Pa | 400 Pa | >99,99% |
| HF-WGB | 484 × 484 × 69 | 700 | 6.6 | 400 | <220 Pa | 400 Pa | >99,99% |
| HF-WGB | 610 × 610 × 69 | 1100 | 10.7 | 650 | <220 Pa | 400 Pa | >99,99% |
| HF-WGB | 915 × 610 × 69 | 1600 | 16.0 | 950 | <220 Pa | 400 Pa | >99,99% |
| HF-WGB | 1220 × 610 × 69 | 2200 | 21.3 | 1000 | <220 Pa | 400 Pa | >99,99% |
| HF-WGB | 610 × 610 × 90 | 1500 | 14.9 | 900 | <220 Pa | 400 Pa | >99,99% |
| HF-WGB | 915 × 610 × 90 | 2000 | 22.3 | 1200 | <220 Pa | 400 Pa | >99,99% |
| HF-WGB | 1220 × 610 × 90 | 2800 | 29.8 | 1800 | <220 Pa | 400 Pa | >99,99% |
Send the required size, rated airflow, efficiency grade, maximum initial resistance, frame material, gasket position and test standard. Healthy Filters can review the media, pleat depth, frame, sealing method, protective mesh, label and packaging. Material, dimensions, appearance and assembly are checked during production. Airflow, resistance, efficiency or leakage verification is available when the test method, sample scope and report requirement are agreed in advance.
Media options can be reviewed for H-class and U-class projects. The grade, airflow, resistance and test method must be confirmed for the selected size before the filter is specified.
Yes. Provide a drawing or sample with width, height, depth, tolerance, frame and gasket details so fit can be reviewed before sampling.
Testing is available to the agreed project requirement. Confirm whether the order needs resistance, efficiency, leakage or another test, together with the standard and report format.
Use the system pressure-drop limit, contamination level, operating hours and maintenance plan. Do not apply one fixed service-life claim to every cleanroom or HVAC system.
Send the size, quantity, efficiency grade, rated airflow, initial-pressure-drop limit, frame and gasket requirements, application and requested testing.
Please send the filter size, airflow, efficiency grade, initial-resistance limit, frame and gasket details, quantity and required test method. A drawing or sample will help us confirm the configuration.
