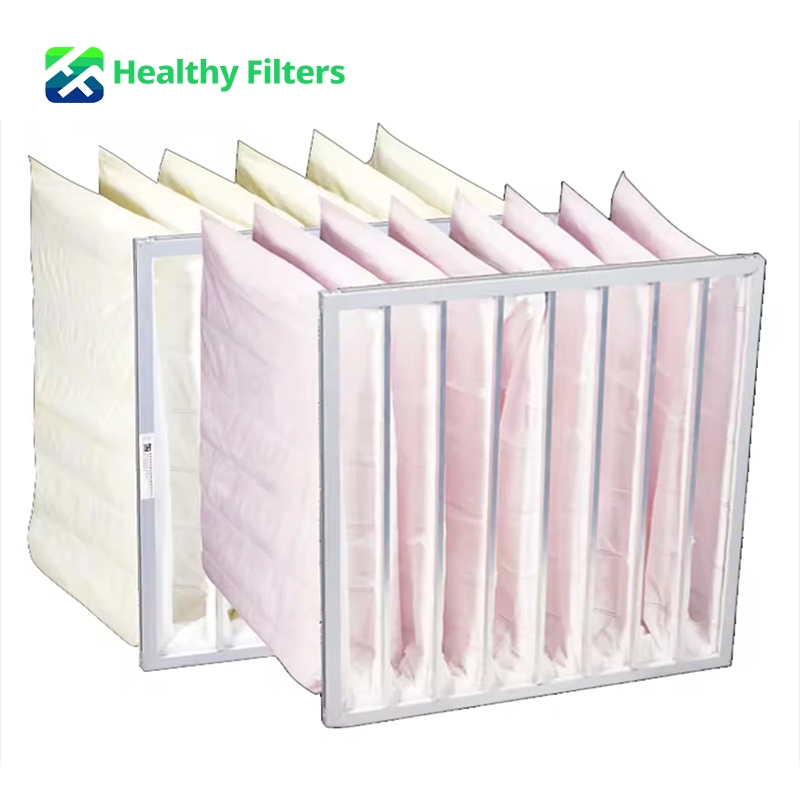

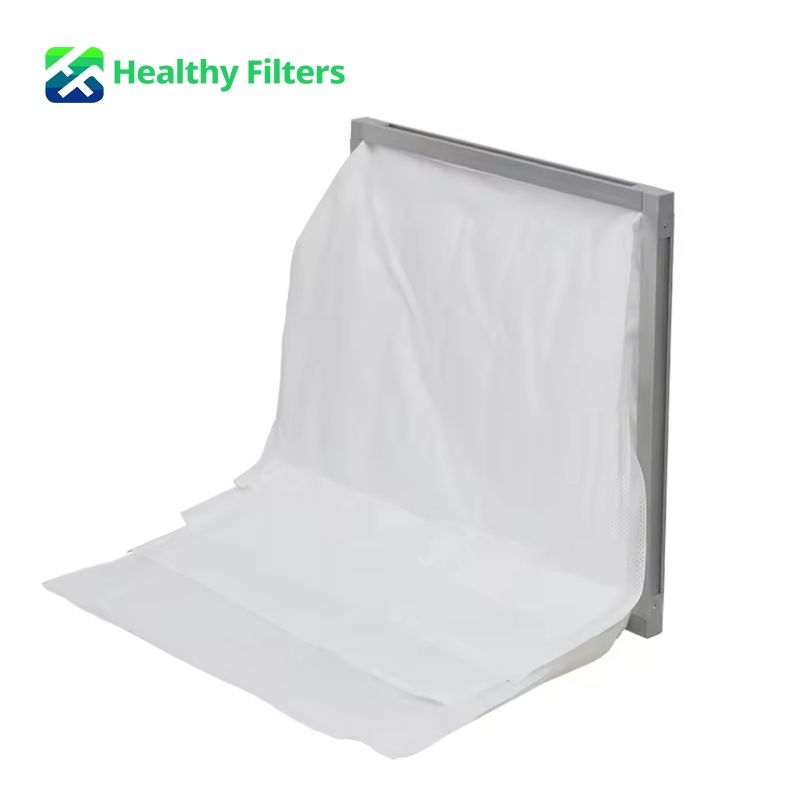

The Nonwoven Pocket Filter is a high-capacity medium-efficiency air filter designed for HVAC systems, air handling units (AHUs), and industrial ventilation applications. Manufactured with progressive-density synthetic fiber media and ultrasonic welded pocket construction, it delivers excellent dust-holding capacity, low pressure drop, and stable airflow performance.

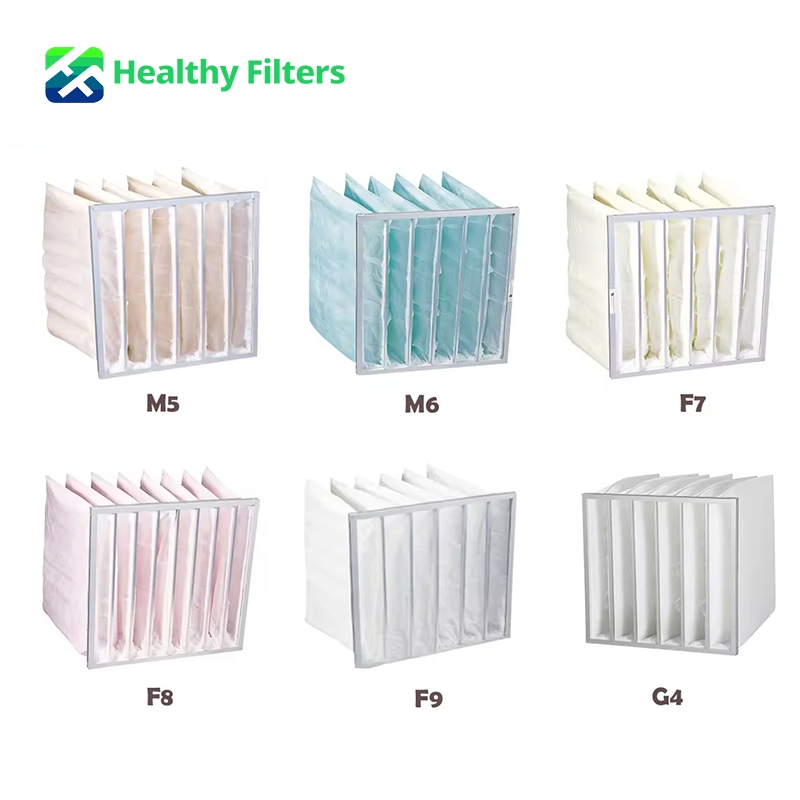

Available in G4, M5, M6, F7, F8, and F9 efficiency grades, it provides reliable protection for downstream filters while improving indoor air quality and reducing maintenance costs.
The Nonwoven Pocket Filter is engineered for medium-efficiency air filtration in commercial, industrial, and institutional environments.

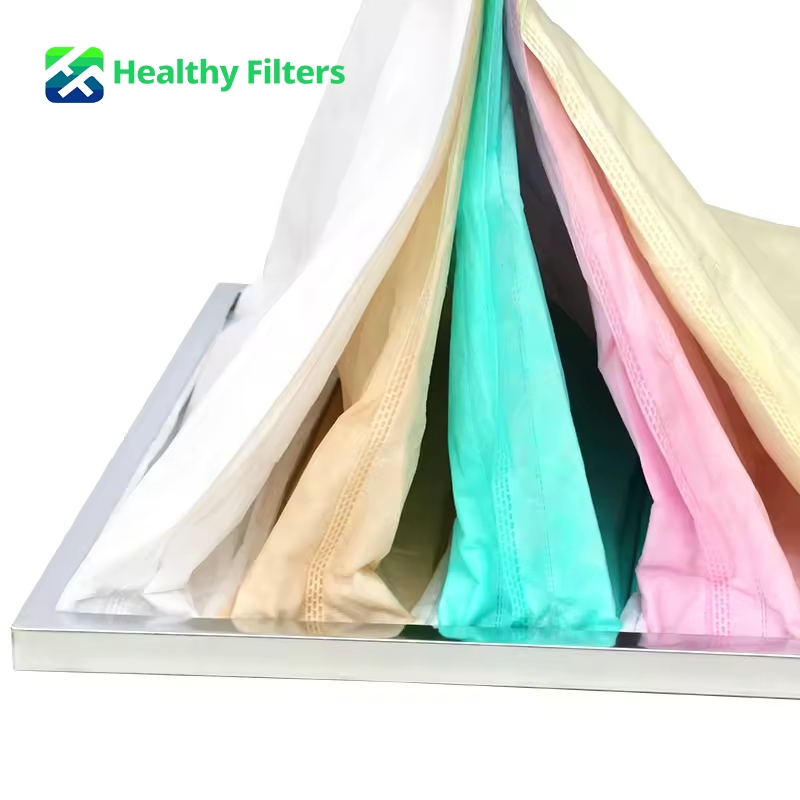

Constructed from high-quality synthetic nonwoven filter media using advanced ultrasonic welding technology, the filter pockets maintain their shape during operation and ensure uniform airflow distribution across the entire filtration surface.
The progressive-density media structure allows particles to be captured throughout the depth of the filter, resulting in higher dust holding capacity, longer service life, and lower energy consumption.
Designed for use as a secondary filtration stage after pre-filters, pocket filters effectively remove fine dust, pollen, fibers, and airborne contaminants before air enters sensitive environments.
FEATURES✔ High Dust Holding CapacityLarge filtration area increases dust retention and extends service life. ✔ Low Pressure DropOptimized airflow design reduces energy consumption. ✔ Ultrasonic Welded Pocket StructureMaintains pocket shape and prevents airflow deformation. ✔ Progressive Synthetic Fiber MediaCaptures particles throughout the filter depth. ✔ Stable Airflow PerformanceUniform airflow distribution minimizes resistance fluctuations. ✔ Multiple Efficiency Grades AvailableG4, M5, M6, F7, F8, and F9 options available. ✔ Long Service LifeReduced replacement frequency lowers maintenance costs. ✔ Lightweight ConstructionEasy installation and replacement. ✔ Custom Sizes AvailableManufactured according to customer requirements. |
APPLICATIONSHVAC Ventilation SystemsCommercial and industrial air handling systems. Air Handling Units (AHU)Secondary filtration stage for improved air quality. Hospitals & Healthcare FacilitiesReduces airborne contaminants and protects sensitive environments. Pharmaceutical ManufacturingSupports controlled production environments. Electronics & Semiconductor FacilitiesProtects production areas from airborne particles. Food Processing PlantsImproves indoor hygiene and air cleanliness. Commercial BuildingsOffice buildings, shopping malls, airports, and hotels. Cleanroom Pre-FiltrationExtends the service life of HEPA filters. Data CentersProtects servers and sensitive equipment from dust contamination. |
| Parameter | Specification |
|---|---|
| Product Name | Nonwoven Pocket Filter |
| Filter Type | Medium Efficiency Bag Filter |
| Efficiency Grade | G4 / M5 / M6 / F7 / F8 / F9 |
| Filter Media | Synthetic Nonwoven Fiber |
| Pocket Construction | Ultrasonic Welded |
| Frame Material | Aluminum / Galvanized Steel / Stainless Steel / Plastic |
| Initial Resistance | 45–125 Pa |
| Dust Holding Capacity | High |
| Operating Temperature | ≤ 80°C |
| Filtration Stage | Secondary Filtration |
| Airflow Capacity | High Airflow |
| Custom Sizes | Available |
