Filtro HEPA de minipliegues | Filtro de aire compacto de alta eficiencia para salas blancas y sistemas HVAC

Filtro HEPA de minipliegues | Filtro de aire compacto de alta eficiencia para salas blancas y sistemas HVAC

Características

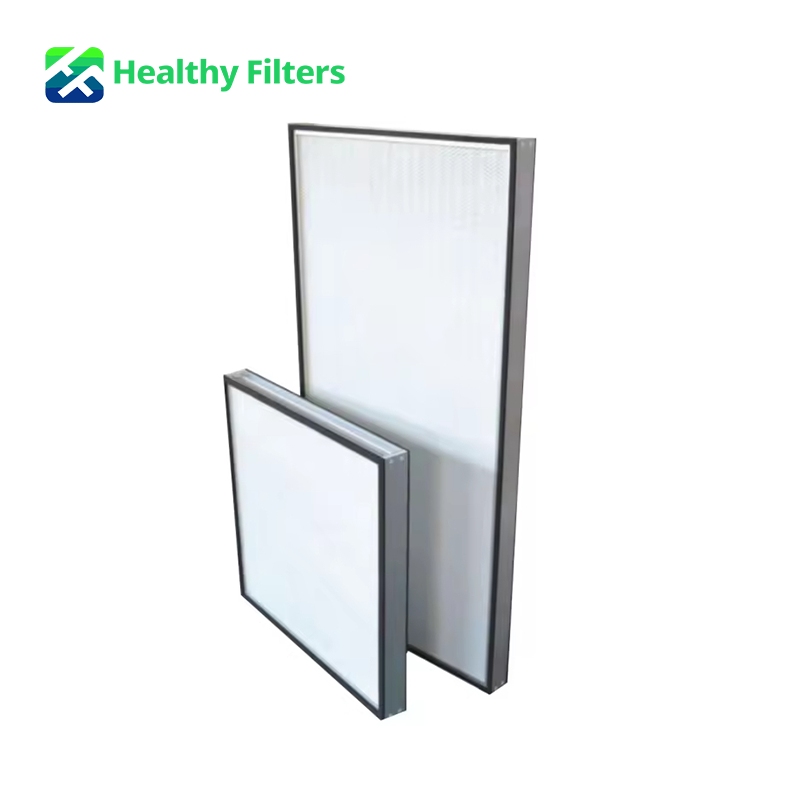

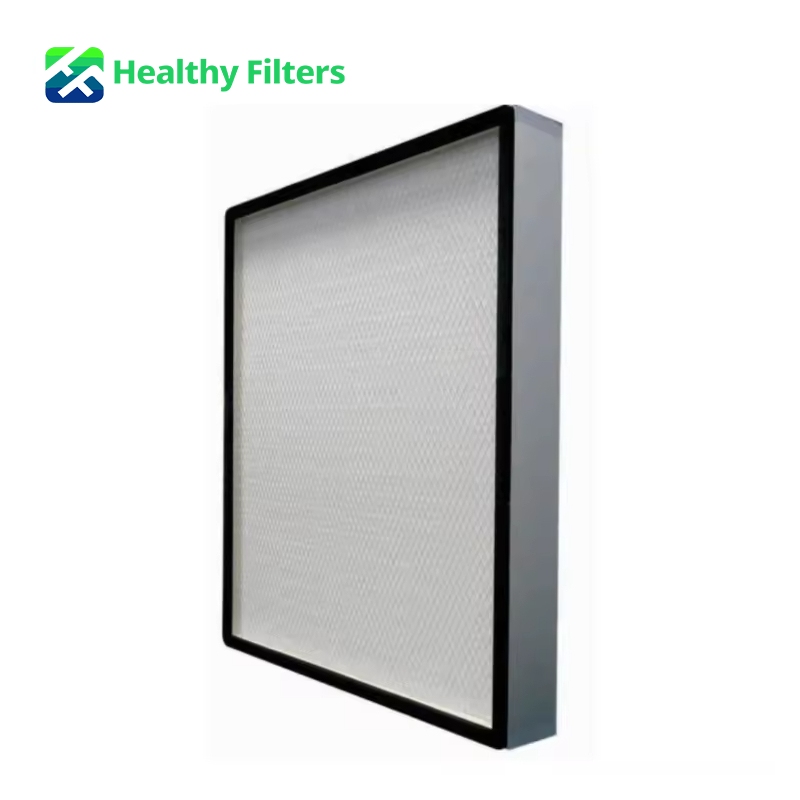

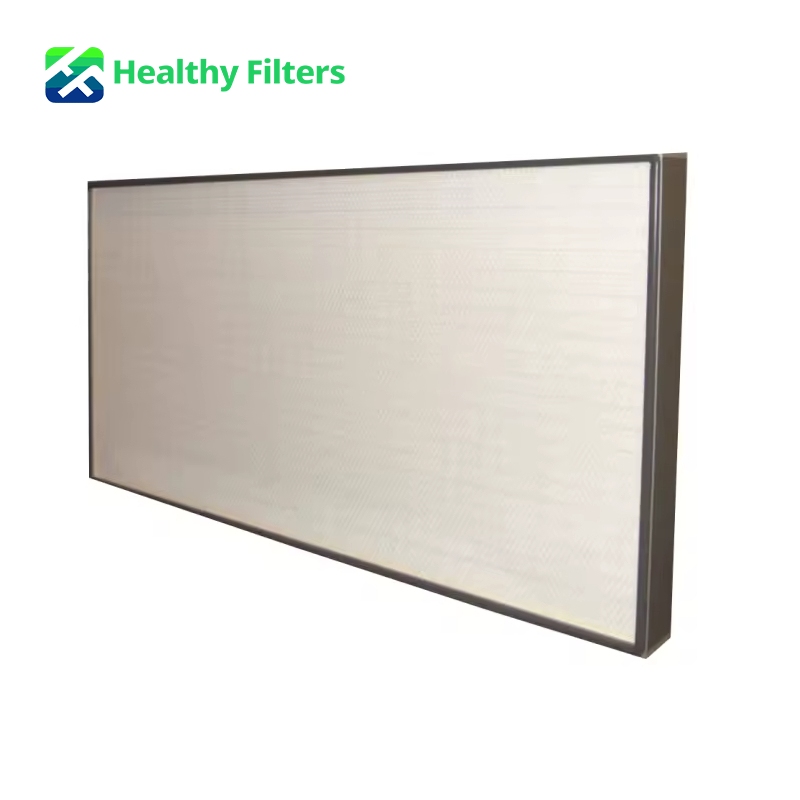

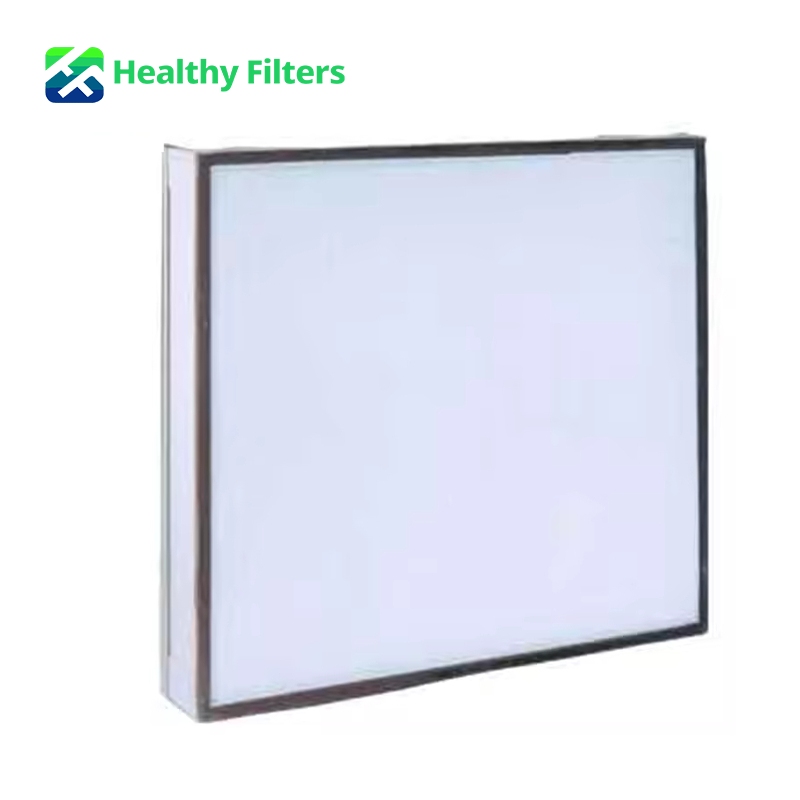

Mini-pleat HEPA filter for cleanroom and HVAC terminal filtration.

  • Superfine fiberglass or PP high-efficiency media options
  • Hot-melt separators support compact, evenly spaced pleats
  • HF-WGB reference sizes from 305 × 305 × 69 mm to 1220 × 610 × 90 mm
  • Custom frame, media, dimensions and packaging for OEM projects
  • Efficiency, resistance and leakage testing available to an agreed method

Soporte para muestreo rápido

Muestras listas en 3-7 días para pedidos OEM y ODM personalizados. Ofrecemos soluciones de personalización flexibles para adaptarnos a las necesidades específicas de su producto.

Equipos de producción avanzados y calidad estable

Equipadas con líneas de producción automatizadas profesionales y maquinaria de prueba sofisticada, lo que permite una calidad de producto constante y fiable en todos los lotes.

Producción en masa y envíos puntuales.

Una eficiente capacidad de fabricación a gran escala garantiza que los productos terminados se puedan entregar en un plazo de 15 a 20 días hábiles, lo que garantiza la puntualidad en los plazos de envío.

Control de calidad estricto según la norma ISO

Toda la producción cumple con las estrictas normas ISO 9001. Cada envío incluye un certificado de control de calidad completo que garantiza el cumplimiento de las especificaciones de fábrica.

Descripción

The HF-WGB mini-pleat HEPA filter is designed for final-stage particle filtration in cleanrooms, controlled production areas and HVAC terminal systems. Its compact pleat pack uses superfine fiberglass paper or PP high-efficiency filter media separated by hot-melt adhesive. This construction provides a large media area without the bulky aluminum or paper separators used in conventional deep-pleat filters.

Use the filter where the selected efficiency grade, airflow and pressure-drop limit have been confirmed for the installation. Healthy Filters can review the frame material, filter depth, gasket, protective mesh, media grade and packaging against your drawing or operating data. Because resistance changes with size, media and test airflow, the final performance specification should be agreed for the selected model rather than copied from another size.

What Problems Can This Filter Solve?

  • Limited installation depth: the mini-pleat structure increases media area within a compact frame.
  • Uneven airflow through the pleat pack: hot-melt separators maintain pleat spacing and airflow paths.
  • Project-specific fit: dimensions, frame, gasket and protective mesh can be reviewed against the installation drawing.
  • Unclear acceptance criteria: efficiency, resistance and leakage checks can be defined before sampling or production.

Parámetros técnicos

The following HF-WGB data comes from the current company technical records. Values apply to the listed reference configuration. Confirm the selected media grade, test airflow and acceptance method before ordering.

Modelo Tamaño (mm) Caudal de aire nominal (m³/h) Área del filtro (m²) Dust Holding Capacity (g/m²) Caída de presión inicial Caída de presión final recomendada Reference Arrestance
HF-WGB 484 × 484 × 50 500 4.6 300 <220 Pa 400 Pa >99,99%
HF-WGB 610 × 610 × 50 800 7.5 450 <220 Pa 400 Pa >99,99%
HF-WGB 305 × 305 × 69 260 2.5 150 <220 Pa 400 Pa >99,99%
HF-WGB 484 × 484 × 69 700 6.6 400 <220 Pa 400 Pa >99,99%
HF-WGB 610 × 610 × 69 1100 10.7 650 <220 Pa 400 Pa >99,99%
HF-WGB 915 × 610 × 69 1600 16.0 950 <220 Pa 400 Pa >99,99%
HF-WGB 1220 × 610 × 69 2200 21.3 1000 <220 Pa 400 Pa >99,99%
HF-WGB 610 × 610 × 90 1500 14.9 900 <220 Pa 400 Pa >99,99%
HF-WGB 915 × 610 × 90 2000 22.3 1200 <220 Pa 400 Pa >99,99%
HF-WGB 1220 × 610 × 90 2800 29.8 1800 <220 Pa 400 Pa >99,99%

Materials and Construction

  • Medio filtrante: superfine fiberglass paper or PP high-efficiency filter paper, selected for the agreed efficiency and resistance target.
  • Separador: hot-melt adhesive maintains the mini-pleat spacing.
  • Frame and sealing: material, gasket, protective mesh and sealant are confirmed for the installation and operating environment.

Aplicaciones típicas

  • Cleanroom terminal filtration for electronics, precision manufacturing and controlled production areas
  • Final-stage filtration in clean HVAC air-supply systems
  • Pharmaceutical, food and laboratory areas where the required grade and test method are defined
  • OEM air-handling or purification equipment with project-specific size and airflow limits

Personalización y control de calidad

Send the required size, rated airflow, efficiency grade, maximum initial resistance, frame material, gasket position and test standard. Healthy Filters can review the media, pleat depth, frame, sealing method, protective mesh, label and packaging. Material, dimensions, appearance and assembly are checked during production. Airflow, resistance, efficiency or leakage verification is available when the test method, sample scope and report requirement are agreed in advance.

Preguntas frecuentes

Which efficiency grades are available?

Media options can be reviewed for H-class and U-class projects. The grade, airflow, resistance and test method must be confirmed for the selected size before the filter is specified.

Can the filter be made to a custom size?

Yes. Provide a drawing or sample with width, height, depth, tolerance, frame and gasket details so fit can be reviewed before sampling.

¿Se prueba cada filtro individualmente?

Testing is available to the agreed project requirement. Confirm whether the order needs resistance, efficiency, leakage or another test, together with the standard and report format.

How should replacement timing be determined?

Use the system pressure-drop limit, contamination level, operating hours and maintenance plan. Do not apply one fixed service-life claim to every cleanroom or HVAC system.

¿Qué información se necesita para obtener un presupuesto?

Send the size, quantity, efficiency grade, rated airflow, initial-pressure-drop limit, frame and gasket requirements, application and requested testing.

Get a Project Quote

Please send the filter size, airflow, efficiency grade, initial-resistance limit, frame and gasket details, quantity and required test method. A drawing or sample will help us confirm the configuration.
