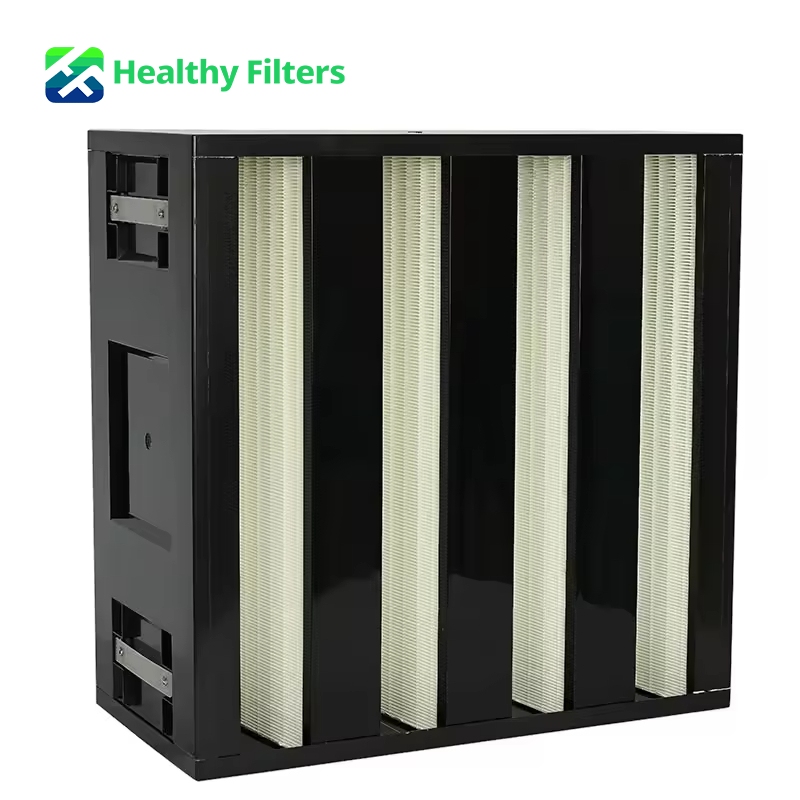

The V-Bank HEPA Filter is a high-capacity compact air filter designed for HVAC systems, cleanrooms, hospitals, pharmaceutical facilities, and industrial ventilation applications. Featuring a V-shaped mini-pleat configuration, it provides a large filtration area, high airflow capacity, low pressure drop, and extended service life while maintaining superior filtration efficiency.
Available in F7, F8, F9, H10, H11, H12, H13, and H14 efficiency grades, it is ideal for both terminal filtration and pre-filtration of high-efficiency air systems.
The V-Bank HEPA Filter is engineered to maximize airflow and filtration performance while minimizing installation space and operating costs.
Constructed with multiple mini-pleat filter packs arranged in a V-shaped configuration, the filter significantly increases effective filtration area compared to traditional compact filters. This design reduces airflow resistance, lowers energy consumption, and extends filter lifespan.
Manufactured using premium fiberglass media and durable polypropylene, galvanized steel, or aluminum frames, the filter provides reliable performance in demanding commercial and industrial environments.
The V-Bank design is particularly suitable for modern HVAC systems requiring high airflow volumes, energy efficiency, and compact installation dimensions.
FEATURES✔ High Airflow CapacityOptimized V-bank structure supports large air volume systems. ✔ Large Effective Filtration AreaMultiple mini-pleat packs maximize dust holding capacity. ✔ Low Pressure DropReduces HVAC energy consumption and operating costs. ✔ Compact Space-Saving DesignProvides high filtration performance within limited installation space. ✔ Multiple Efficiency GradesAvailable from F7 to H14 for various air quality requirements. ✔ Long Service LifeExtended filter replacement intervals reduce maintenance costs. ✔ High Structural StrengthSuitable for continuous operation in demanding environments. ✔ Lightweight ConstructionEasy transportation and installation. ✔ Reliable Filtration PerformanceConsistent airflow distribution and particle capture efficiency. ✔ OEM & Custom ManufacturingCustom dimensions and frame configurations available. |
APPLICATIONSCleanroomsTerminal filtration for pharmaceutical, biotechnology, and electronics manufacturing. Hospitals & Healthcare FacilitiesProvides high-quality clean air in critical environments. Pharmaceutical ProductionSupports GMP-compliant cleanroom ventilation systems. Food & Beverage ProcessingMaintains hygienic air quality standards. Commercial HVAC SystemsIdeal for office buildings, shopping malls, airports, and hotels. Industrial Ventilation SystemsUsed in large air volume ventilation applications. Semiconductor & Electronics ManufacturingProtects sensitive production environments. Air Handling Units (AHU)Suitable for medium and high-efficiency filtration stages. Data CentersProtects servers and critical equipment from airborne contaminants. |
| Parameter | Specification |
|---|---|
| Product Name | V-Bank HEPA Filter |
| Filter Type | Mini Pleat Compact Air Filter |
| Efficiency Grade | F7, F8, F9, H10, H11, H12, H13, H14 |
| Filter Media | Fiberglass Paper |

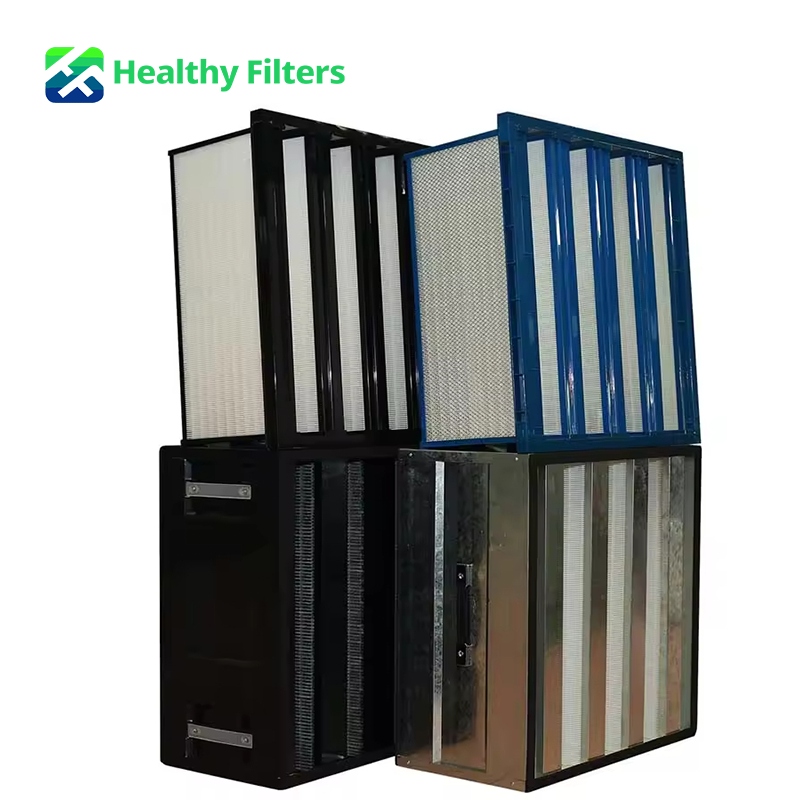

| Frame Material | Polypropylene (Black/Blue), Galvanized Steel, Aluminum Alloy |

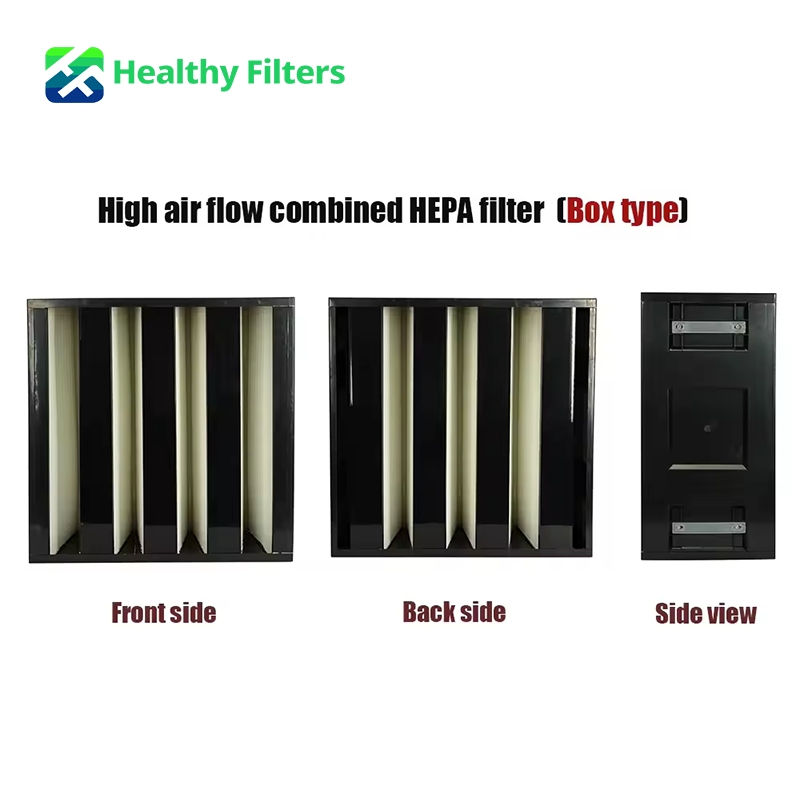

| Structure Type | Flange Type / Box Type |
| Rated Airflow | 1200–3000 m³/h |
| Initial Resistance | 80–280 Pa (Depending on Efficiency Grade) |
| Filtration Stage | Medium to HEPA Filtration |
| Installation | HVAC & AHU Systems |
| Custom Sizes | Available |

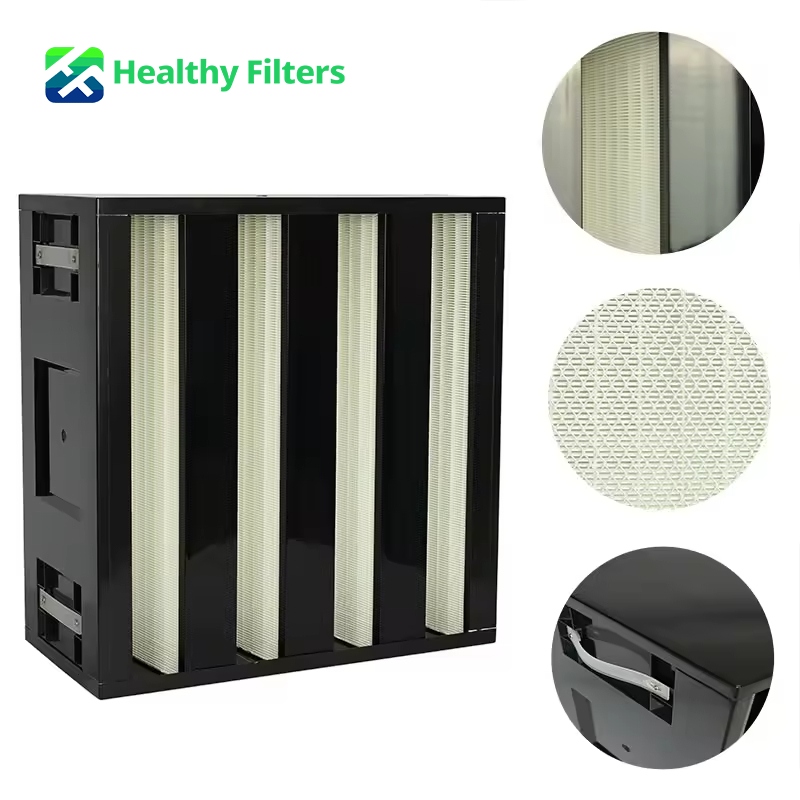

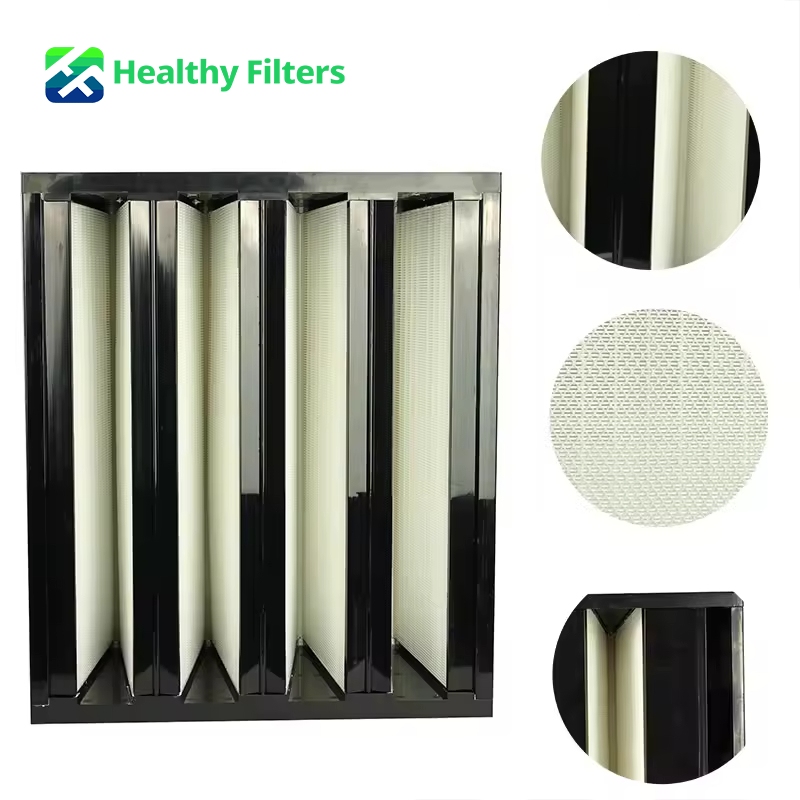

Product Details
