Healthy Filters’ Gel Seal HEPA Filters are engineered to provide the highest level of air cleanliness for critical cleanroom environments.

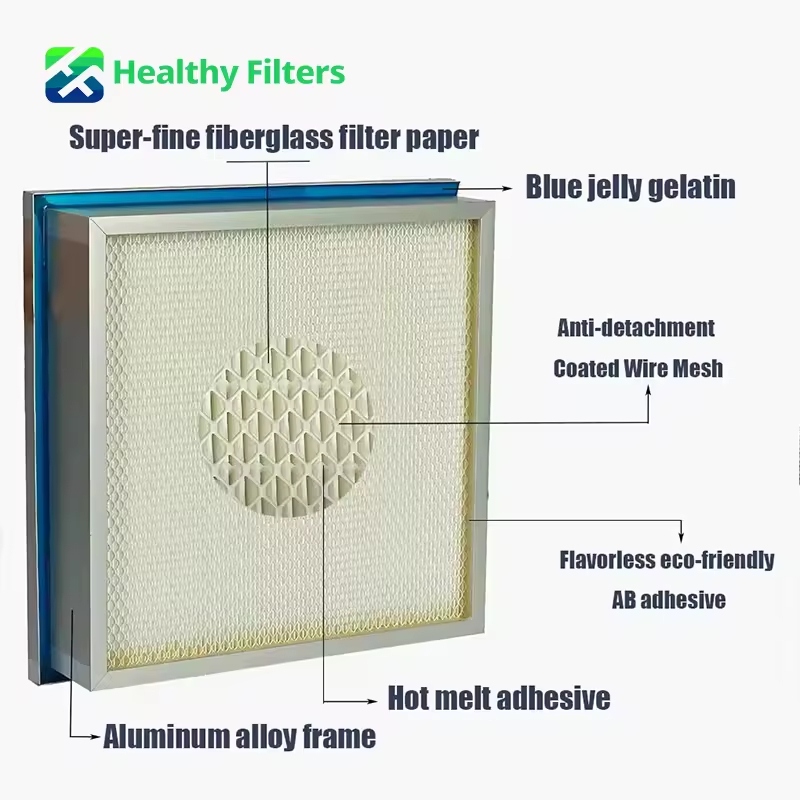

Unlike conventional gasket-sealed HEPA filters, the gel seal design creates a continuous airtight barrier that significantly reduces leakage risks during installation and maintenance. The separator-type construction ensures consistent airflow while maintaining low resistance and high dust holding capacity.
Manufactured under strict quality control, every filter is individually tested before shipment to guarantee reliable performance and compliance with international cleanroom standards.
| Model Size (mm) | Airflow (m³/h) | Efficiency | Initial Pressure (Pa) |
|---|---|---|---|
| 412 × 412 × 93 | 500 | H13 / H14 / U15 | 240-260 |
| 516 × 613 × 93 | 1000 | H13 / H14 / U15 | 240-260 |
| 631 × 631 × 93 | 1200 | H13 / H14 / U15 | 240-260 |
| 758 × 631 × 93 | 1500 | H13 / H14 / U15 | 240-260 |
| 1026 × 631 × 93 | 2000 | H13 / H14 / U15 | 240-260 |
Custom sizes and airflow capacities are available upon request.
We offer various standard configurations to meet different cleanroom requirements.
| Option | Available |
|---|---|
| Efficiency | H13 / H14 / U15 |
| Frame | Aluminum Alloy |
| Seal Type | Gel Seal |
| Media | Fiberglass HEPA Media |
| Separator | Aluminum Foil |
| Thickness | 93 mm / Custom |
| Face Guard | Optional |
| Gasket Position | Optional |
| Dimensions | Standard & Customized |
Pharmaceutical CleanroomsFinal HEPA filtration for GMP production areas, sterile manufacturing, and contamination-controlled environments. |
Semiconductor ManufacturingProvides ultra-clean air for wafer fabrication, chip assembly, and other precision manufacturing processes. |
HospitalsSuitable for operating rooms, isolation wards, ICUs, laboratories, and other critical healthcare environments. |
FFU & Cleanroom Ceiling ModulesDesigned for fan filter units (FFUs), terminal ceiling modules, laminar flow systems, and cleanroom HVAC installations. |
Customization Available
|
Quality Inspection
|
